Product Overview

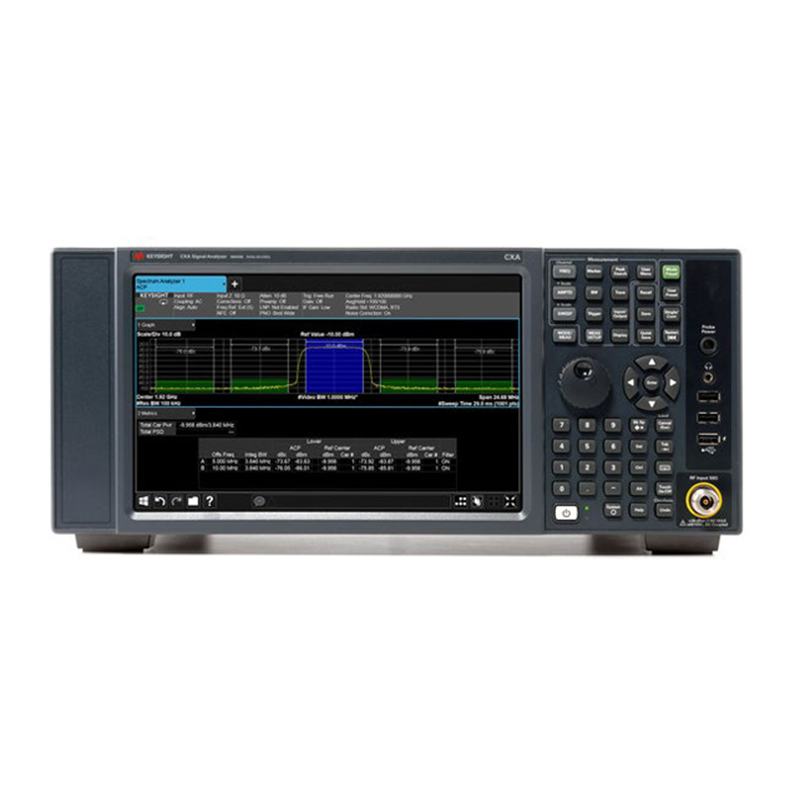

The Keysight CXA signal analyzer is a versatile, low-cost tool for essential signal characterization. It helps you accelerate product testing and development on multiple levels; cost reduction, throughput,design enhancement and beyond. Get essential capability with X-Series expandability in the CXA.

Key Features:

• Master the essentials in signal characterization with the leading low-cost tool in signal analysis
• Perform cost-effective stimulus response measurements with the optional built-in tracking generator
• Add crucial functionality with X-Series measurement applications
• Enhance theory with practical skills when used with a training kit in your RF & microwave education lab


Specifications:

• Standard Attenuator Range: 50 dB
• Standard Attenuator Step: 10 dB
• DANL @1 GHz: -163 dBm
• Maximum Analysis Bandwidth: 25 MHz
• Phase Noise @1 GHz (1 MHz offset): -130 dBc/Hz
• Phase Noise @1 GHz (10 kHz offset): -110 dBc/Hz

Resources

File Resources:

Keysight CXA X-Series Signal Analyzer, Multi-touch N9000B Data Sheet

Keysight N9000B CXA X-Series Signal Analyzer, Multi-touch Configuration Guide
