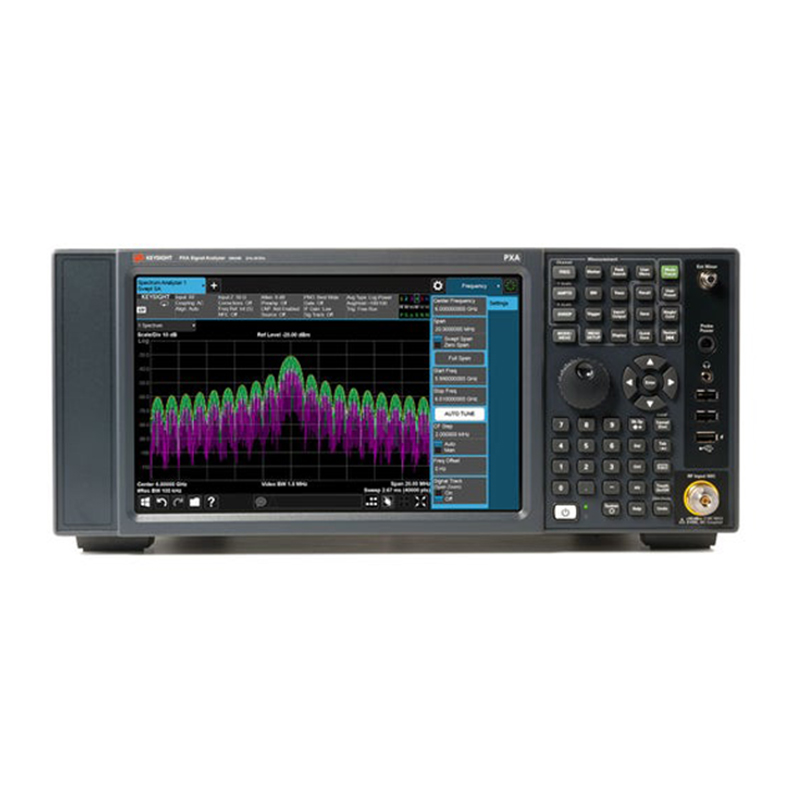

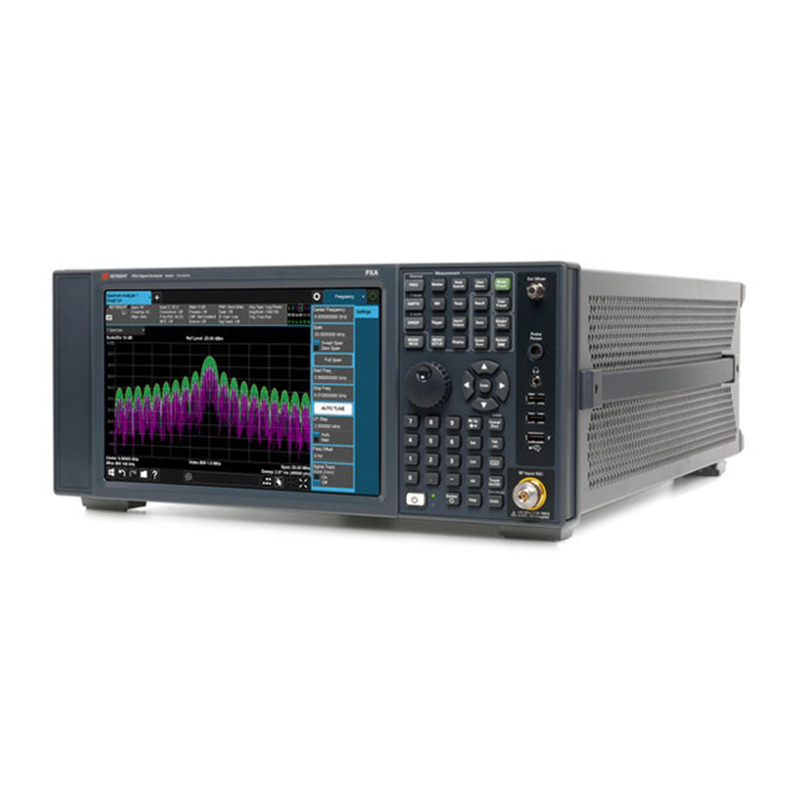

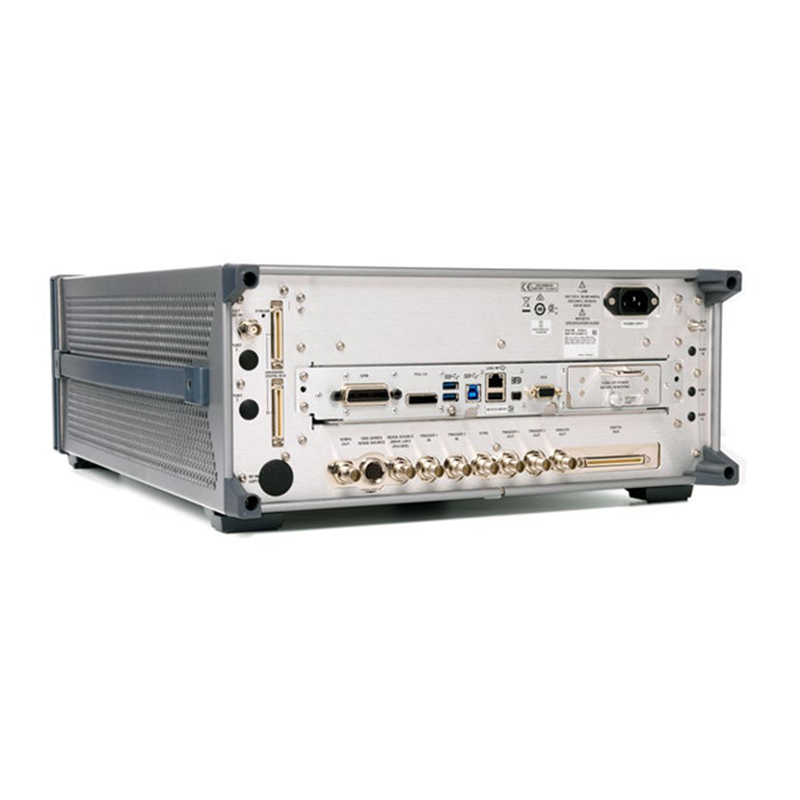

Keysight Technologies N9030B
| PRODUCT | Spectrum Analyzer |
|---|---|
| MODEL | N9030B |
| PRODUCT SERIES | PXA |
| MANUFACTURER | Keysight |
| DESCRIPTION | PXA Signal Analyzer, Multi-touch, 3 Hz to 50 GHz Spectrum Analyzer (Signal Analyzer) |
Product Overview
Product Overview
The Keysight N9030B PXA X-Series signal analyzer offers RF, uW and millimeter frequency ranges for quick, easy performance of diverse noise measurements such as noise figure, phase noise, and spur search (sensitivity). With performance that beats the competition, and the largest suite of measurement applications across technologies and industries, the PXA is the signal (spectrum) analyzer of choice for RF, uW, millimeter wave and digital signal analysis.
Analyze the latest signals with up to 510 MHz analysis bandwidth and better than 70 dB SFDR, and reveal previously hidden signals with Noise Floor Extension (NFE). To see your devices true behavior, get industry-leading phase noise performance by adding the Keysight-proprietary DDS-based LO.
Key Features:
- Analysis BW 25 MHz standard
- Optional 40, 85, 125, 225, 160, and 510 MHz bandwidths.
- Real-Time Bandwidths: 85, 125, 160, 255, and 510 MHz
- DANL @ 1 GHz: -171 dBm
- Overall Amplitude Accuracy: +/- 0.19 dB
- Third Order Intercept @1 GHz (1MHz offset): +22 dBm
- Phase Noise (1GHz Center Frequency):
- -136 dBc/Hz at 10kHz offset
- -132 dBc/Hz at 30kHz offset
- -146 dBc/Hz at 1MHz offset
- Resolution Bandwidth (RBW):1Hz to 3MHz in (10% steps), 4, 5, 6, 8 MHz
- RF input connector: type N (f) 50 ohm
