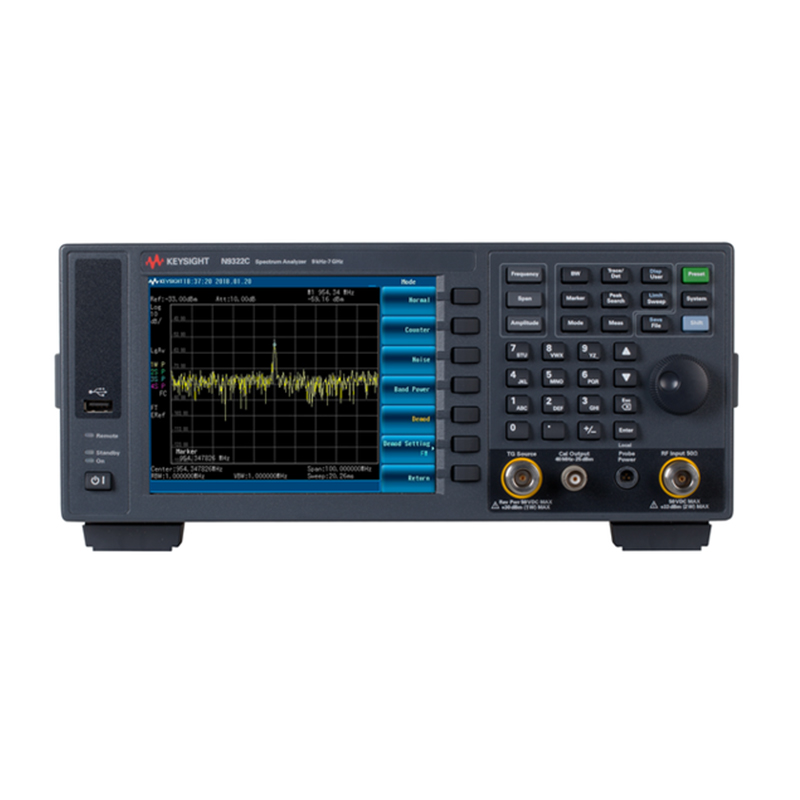

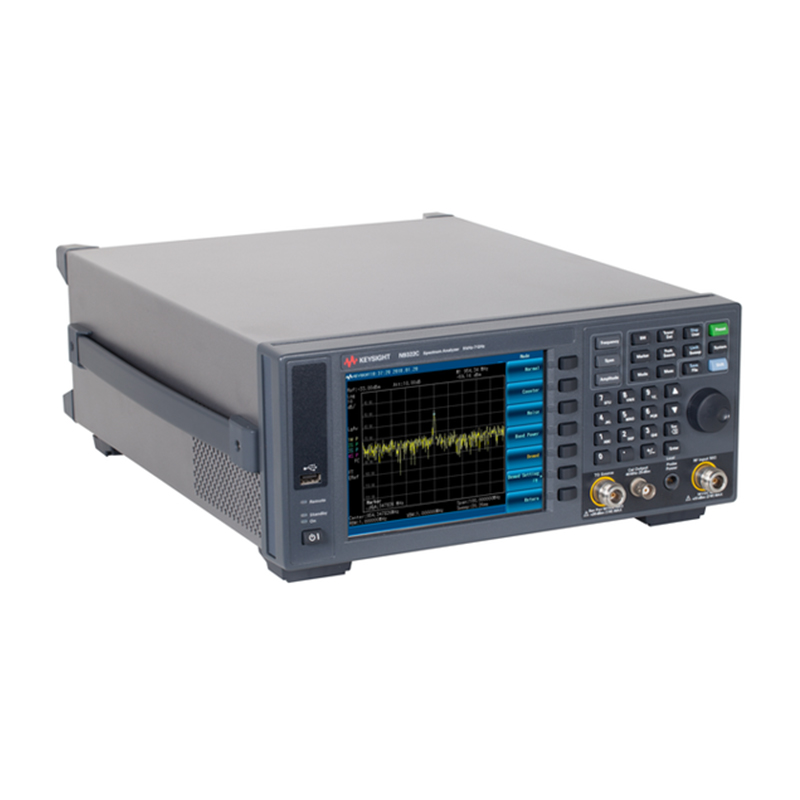

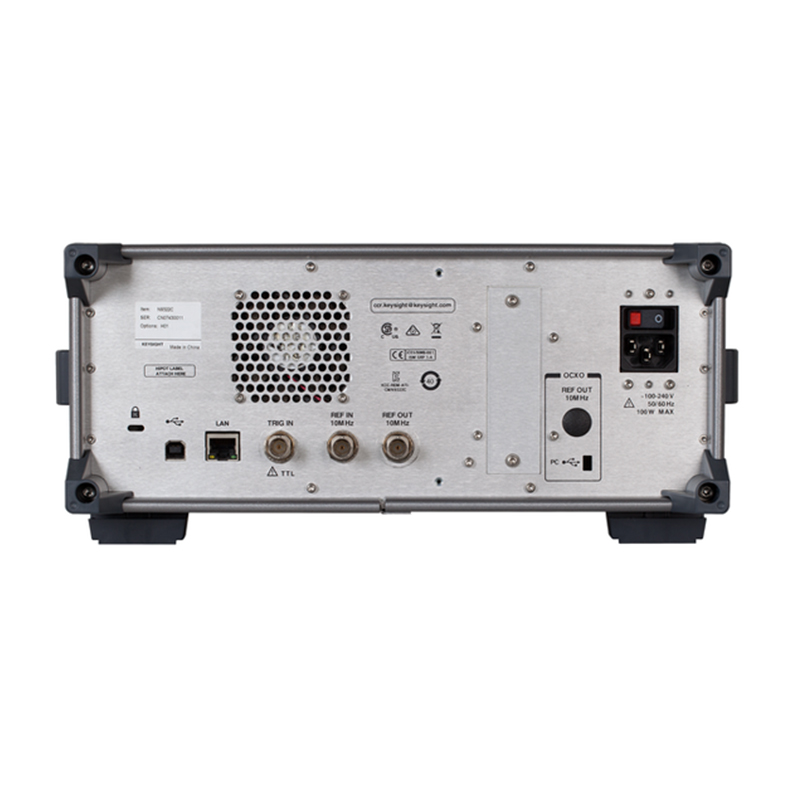

Keysight Technologies N9322C
| PRODUCT | Spectrum Analyzer |
|---|---|
| MODEL | N9322C |
| PRODUCT SERIES | BSA |
| MANUFACTURER | Keysight |
| DESCRIPTION | Basic Spectrum Analyzer; 9 kHz to 7 GHz |
SHARE ON:
Product Overview
Product Overview
Best-in-class RF performance translates to precision for every measurement task with the Keysight N9322C spectrum analyzer. With an annual aging rate up to ± 0.1 ppm, frequency drift is minimal so measurement accuracy is finely tuned. The typical displayed average noise level of up to –152 dBm makes identifying low-level signals quick and easy. Total absolute amplitude accuracy up to ± 0.6 dB ensures you can trust power measurement results.
Key Features:
- 9 kHz to 7 GHz frequency range
- ± 0.3 dB absolute amplitude accuracy – 10 Hz to 3 MHz resolution bandwidth
- –152 dBm displayed average noise level (Freq at 1 GHz, 10 Hz minimum RBW)
- –90 dBc/Hz phase noise
- – 50 dB input attenuator, with 1 dB steps
- +11 dBm TOI – 2 ms to 1000 s sweep time (span ≥ 100 Hz)
- Optional 7 GHz tracking generator, and reflection measurement
Specifications:
- Standard Attenuator Range: 50 dB
- Standard Attenuator Step: 1 dB
- DANL @1 GHz: -152 dBm
- Maximum Analysis Bandwidth: 1 MHz
- Phase Noise @1 GHz (1 MHz offset): -115 dBc/Hz
