Product Overview

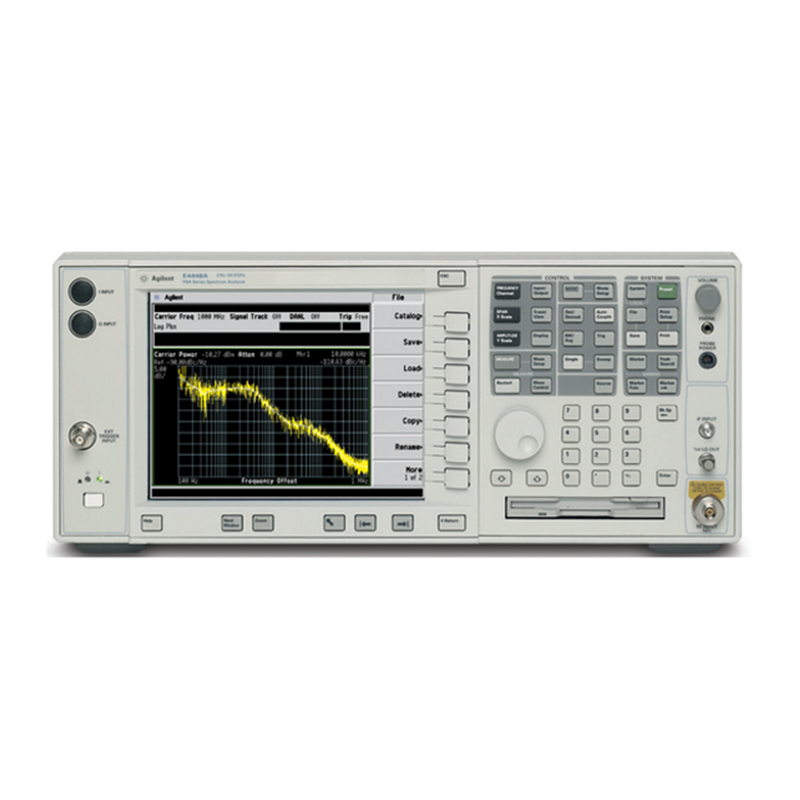

The Keysight E4440A PSA high-performance spectrum analyzer measures and monitors complex RF and microwave signals up to 26.5 GHz. With optional external mixing, the frequency coverage expands to 110 GHz by Keysight’s external mixer, and to 325 GHz by other vendors’ mixers. Migration from PSA to PXA or UXA:

The PXA N9030A, Keysight’s next-generation high-performance signal analyzer, combines the PSA’s technical excellence with state-of-the-art technologies, making it a logical form-fit-functional replacement for the PSA. The PXA N9030A, N9030B or UXA N9040B all offer greater performance, wider analysis bandwidth, and more powerful connectivity.

E4440A Features:

• Resolution Bandwidth 1Hz to 8MHz DANL of -155 dBm
• Analysis bandwidth: 10MHz with option B7J, 40MHz with option 140, and 80MHz with option 122
• Phase noise at 10kHz offset -116dBc at 100kHz offset-122dBc
• 2dB step attenuator. Input RF connector type N (f) 50 Ohm
• Optional APC-3.5 connector with option BAB.


Standard Features Include:

• All-digital IF with auto-ranging capability
• Phase noise optimization Full detector suite
• 160 resolution bandwidth settings (10% steps)
• FFT and swept measurement modes
• Gated sweep Power Suite one-button power measurements
• EMI precompliance measurements with CISPR compliant bandwidths & detectors.


Specifications:

• Standard Attenuator Range: 70 dB
• Standard Attenuator Step: 2 dB
• DANL @1 GHz: -169 dBm
• Maximum Analysis Bandwidth: 80 MHz
• Phase Noise @1 GHz (1 MHz offset): -147 dBc/Hz
• Phase Noise @1 GHz (10 kHz offset): -118 dBc/Hz
• TOI @1 GHz (3rd Order Intercept): +19 dBm

Resources

File Resources:

Keysight Agilent E4440A PSA Series Spectrum Analyzers Data Sheet
