Product Overview

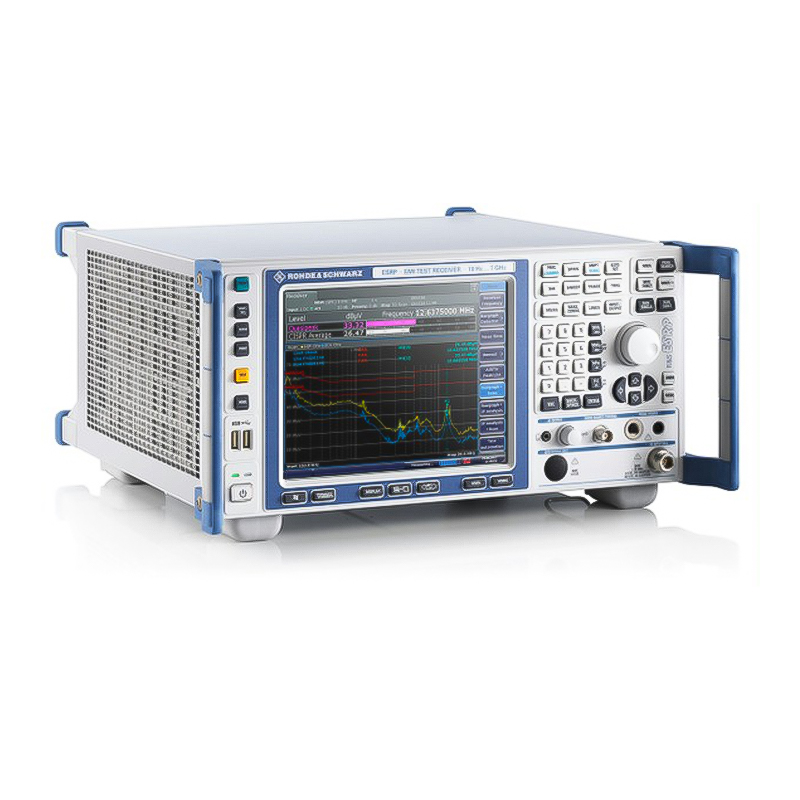

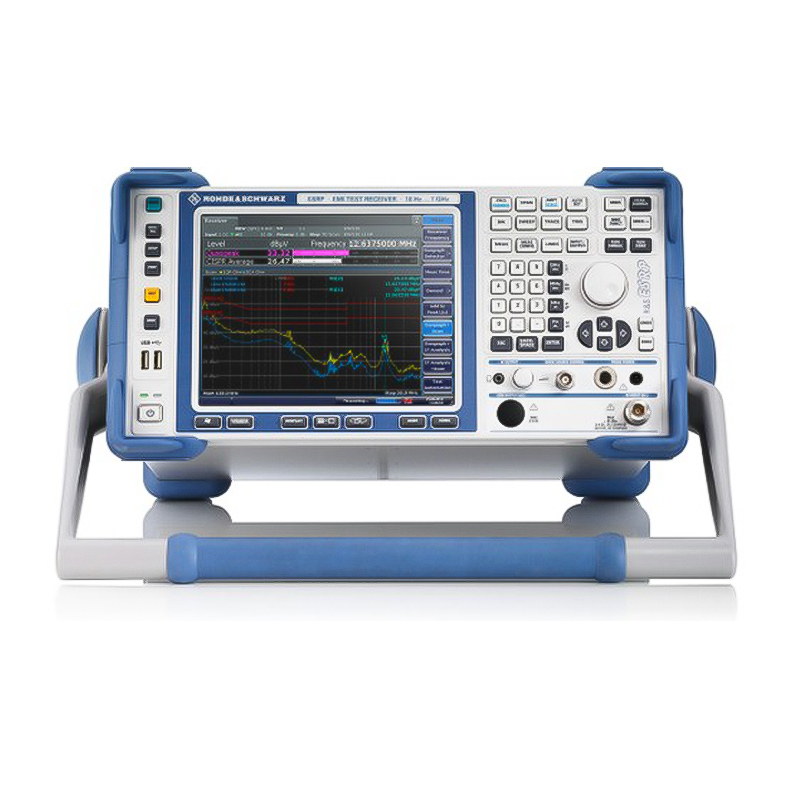

The Rohde & Schwarz ESRP3 EMI Test Receiver, 10 Hz – 3.6 GHz has been designed for diagnostic measurements during development and for precompliance measurements in order to prepare products for final certification testing. It measures electromagnetic disturbances in the frequency range from 10 Hz to 3.6 GHz, using either conventional stepped frequency scan or an FFT-based time domain scan, a method that significantly speeds up measurements. At the same time, the R&S ESRP3 is a full-featured, powerful signal and spectrum analyzer for lab applications. The R&S ESRP3 comes with a straightforward menu structure that combines with the intuitive touchscreen to make the test receiver very easy to operate in any mode.

Features:

• EMI test receiver and signal/spectrum analyzer combined in one box
• Optional preselection and preamplifier (R&S ESRP-B2)
• Resolution bandwidths in line with CISPR, optionally in decade steps from 10 Hz to 1 MHz (R&S ESRP-B29)
• Weighting detectors: max. peak, min. peak, average, RMS, quasi-peak, average with meter time constant, and RMS in line with current CISPR 16-1-1 version
• Standard-compliant disturbance measurements for pulsed disturbances with repetition frequencies ≥ 10 Hz (with R&S ESRP-B2 preselection/preamplifier option)
• Very fast FFT-based time domain scan as an option (R&S ESRP-K53)
• Automatic test routines
• IF analysis as an option (R&S ESRP-K56)
• Standards testing including IEC/EN 61000-3-2, -3-3, MIL-STD-810E and -461
