Product Overview

Key Facts

• Continuous frequency range up to 6 GHz
• Multitechnology solution
• Parallel testing on up to eight RF ports
• High measurement performance
• High measurement accuracy
• Support of a wide range of methods for reducing test time and maximizing capacity utilization
• Minimum space requirements and footprint
• Low weight
• Silent
• High MTBF


Features and Benefits

• High flexibility when designing production concepts thanks to horizontal or vertical mounting
• Short implementation time and ramp-up phase thanks to R&S®CMW500 – Production Test compatible T&M and remote control concept
• High accuracy and throughput thanks to fully automatic level correction
• Eco-friendly due to minimal space requirements and low energy consumption


Brief Description

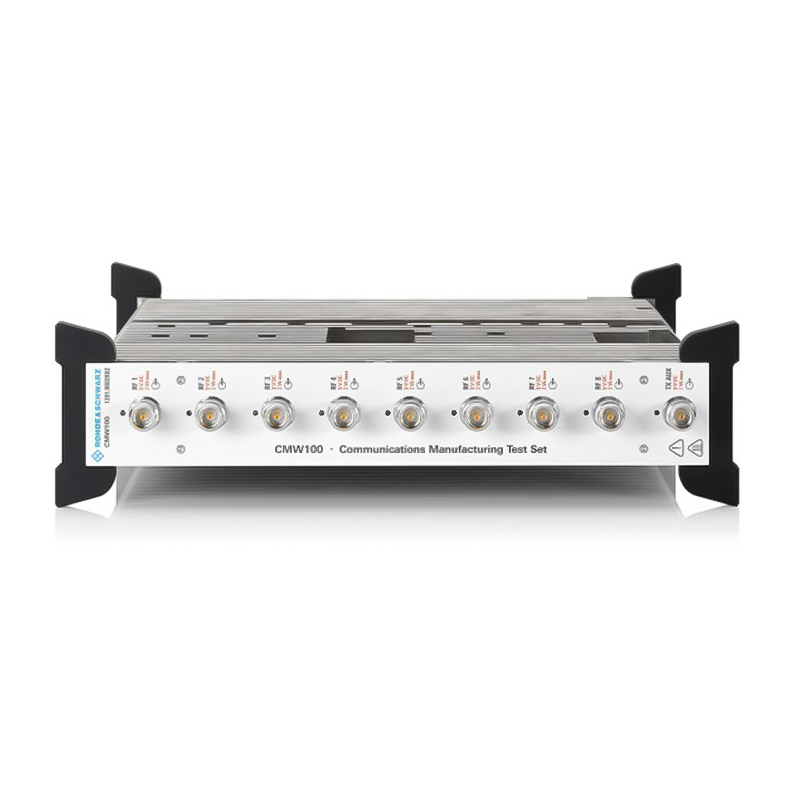

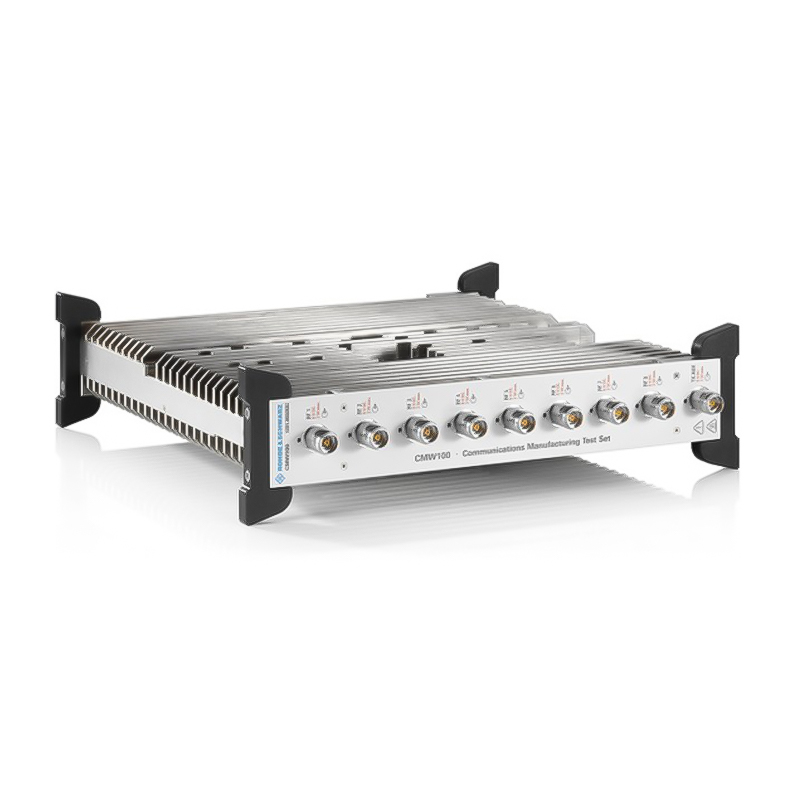

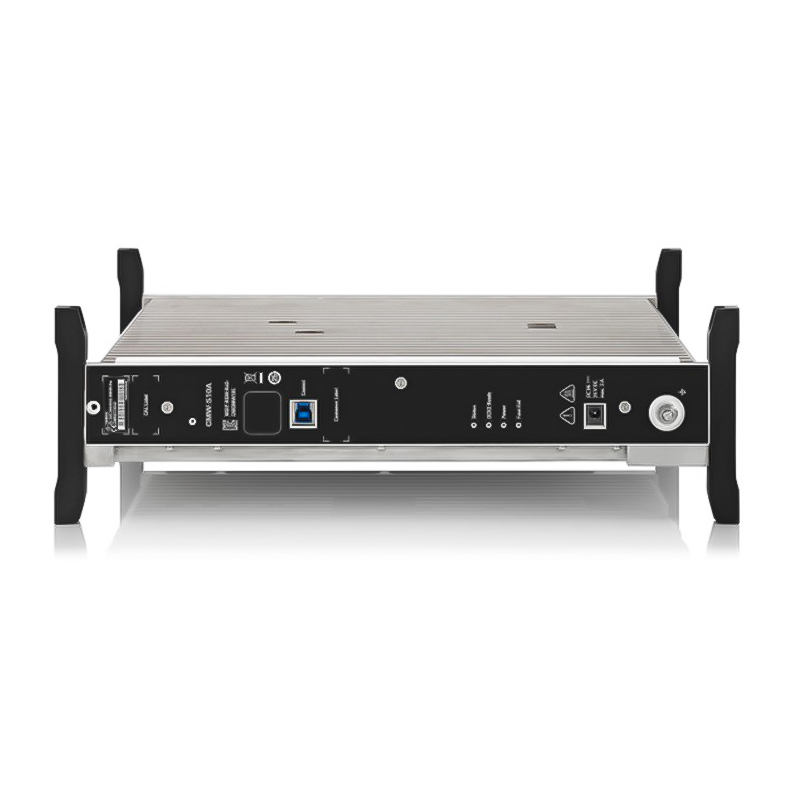

The R&S®CMW100 communications manufacturing test set is a new trendsetting product for calibrating and verifying mobile phones.
The R&S®CMW100 is ideal for use in fully automated robotic production lines:

• Parallel testing of up to eight antennas
• Close connection to test fixture, less attenuation loss and involved cross talking
• Minimum space requirements, footprint and energy consumption
• Fanless for silent operation
• Highest reliability due to dustproof housing
