Products & Equipments

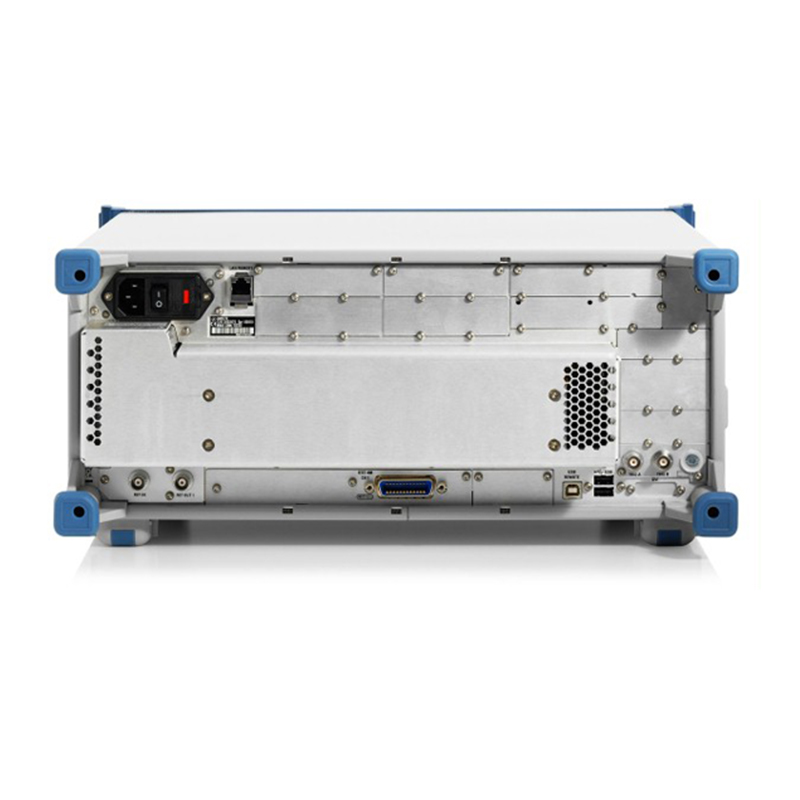

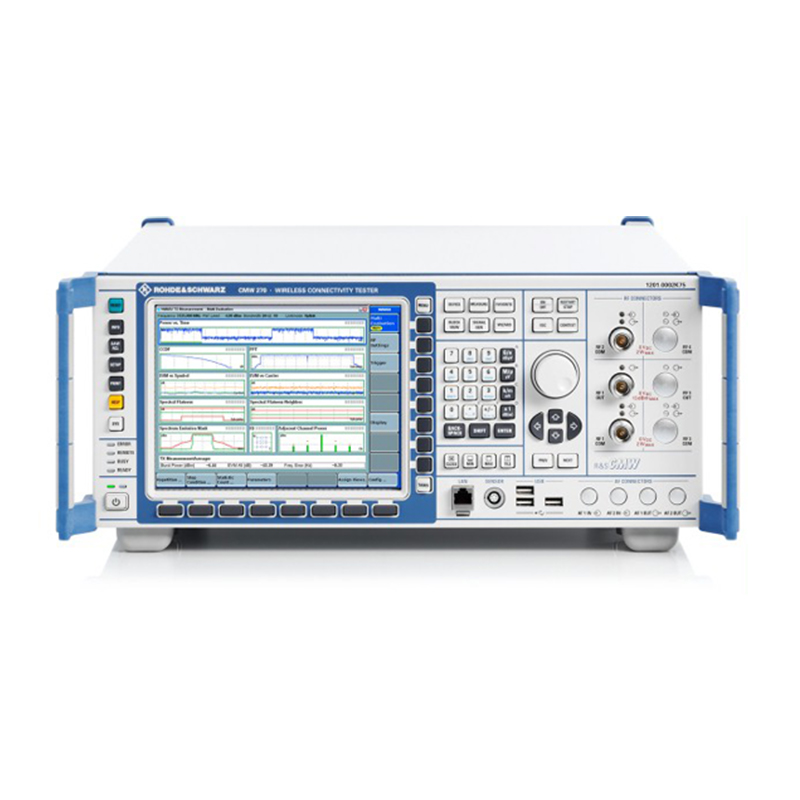

Rohde and Schwarz CMW270
| PRODUCT | Wireless Tester |
|---|---|
| MODEL | CMW270 |
| PRODUCT SERIES | CMW |
| MANUFACTURER | Rohde and Schwarz |
| DESCRIPTION | Wireless Connectivity Tester – Wireless Device Test Sets & Wireless Solution |
Product Overview
Product Overview
Key Facts
- WLAN IEEE 802.11 a,b,g,n network emulation for RF measurements and application/performance testing (end-to-end)
- Bluetooth® RF tester (Basic Rate, Enhanced Data Rate and Low Energy) qualified by the Bluetooth® SIG
- Dual tester concept with multiple-standard RF measurements for WLAN (802.11 a,b,g,n,p,ac) SISO/MIMO and Bluetooth®
- General-purpose ARB generator for WLAN, Bluetooth®, GNSS and various broadcast technologies
- Continuous frequency range up to 6 GHz
Features and Benefits
- Versatile tester for troubleshooting in R&D
- High flexibility for production
- Cost-saving all-in-one concept
- Ready for future requirements
- Reduced operating costs
Brief Description
CMW270 Wireless Connectivity Tester – The non-cellular expert covering WLAN, Bluetooth®, GNSS and various broadcast technologies. The R&S®CMW270 is a cost-effective alternative for the development and production of equipment outside the conventional cellular networks, specially prepared for the test requirements of IoT (Internet of Things) market.
The R&S®CMW270 is the ideal test solution for integrated wireless communications solutions as used in laptops, netbooks, game consoles, data cards, wireless headsets and other products of the IoT market. Within the R&S®CMW500 – Production Test product family, the R&S®CMW270 offers functionality tailored to the above applications. The tester provides network emulation (signaling mode) for WLAN and Bluetooth® as well as generator and analyzer functionality for standards such as WLAN, Bluetooth®, GNSS and broadcast technologies.
