Product Overview

Bluetooth Tester without display, 19″, 2 HU, for remote control

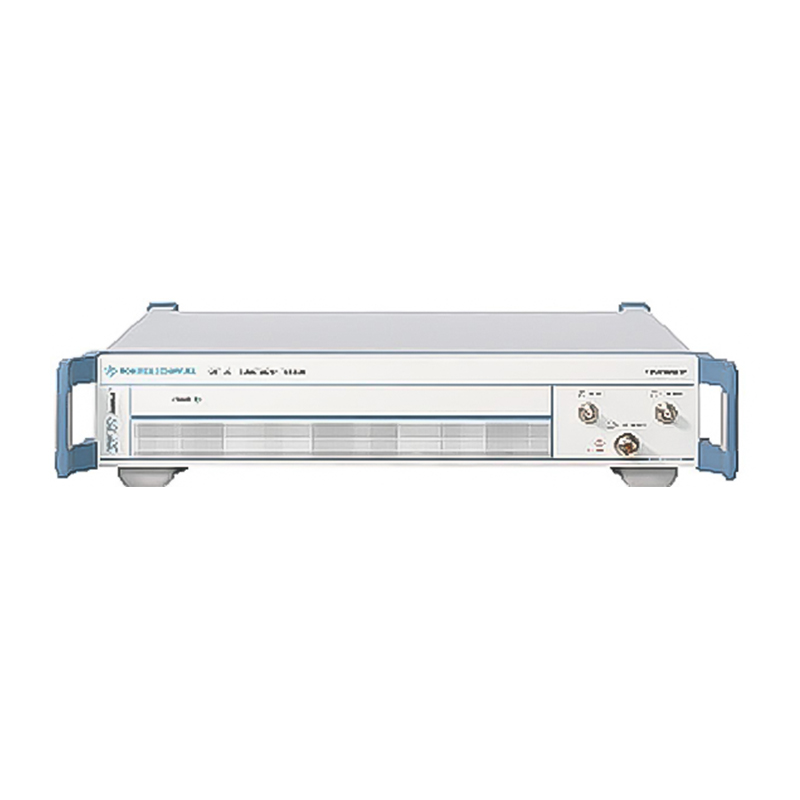

R&S CBT-32 Bluetooth Tester (without display)

The R&S CBT performs Bluetooth RF tests at extremely high speed. Besides power, modulation, frequency and BER tests, the R&S CBT carries out a variety of spectrum measurements on an active Bluetooth connection without requiring any extra spectrum analyzers. While conventional Bluetooth testers sequentially measure power, modulation, frequency accuracy, and, last but not least, frequency drift, the R&S CBT performs all these measurements in a single test cycle, which makes the unit very fast in manufacturing applications. For use in the lab, the R&S CBT offers traces for power, modulation and spectrum, which are output in realtime on a large graphical display.

Features:

• Qualified by the Bluetooth SIG for RF measurements based on the Bluetooth 3.0 specifications.
• Highly flexible troubleshooting in R&D
• Very short measurement times for high throughput in production
• Integrated spectrum measurements

This unit comes without the Display.

• R&S CBTGo software supporting 18 Bluetooth RF test cases as described in Bluetooth

Test Specification Ver. 1.2/2.0/2.0+EDR/2.1/2.1+EDR/3.0+HS

• Cost-effective R&S CBT32 rack version for manufacturing applications
• Multiple audio options available
• The EDR option (R&S CBT-K55) adds a large number of EDR RF tests to the R&S CBT

Bluetooth testers.

• R&S CBT-K57 Bluetooth low energy option adds the capability to measure and generate Bluetooth low energy signals

Resources

File Resources:

Rohde and Schwarz CBT/Rohde and Schwarz CBT32 Bluetooth® Tester Data Sheet
