Product Overview

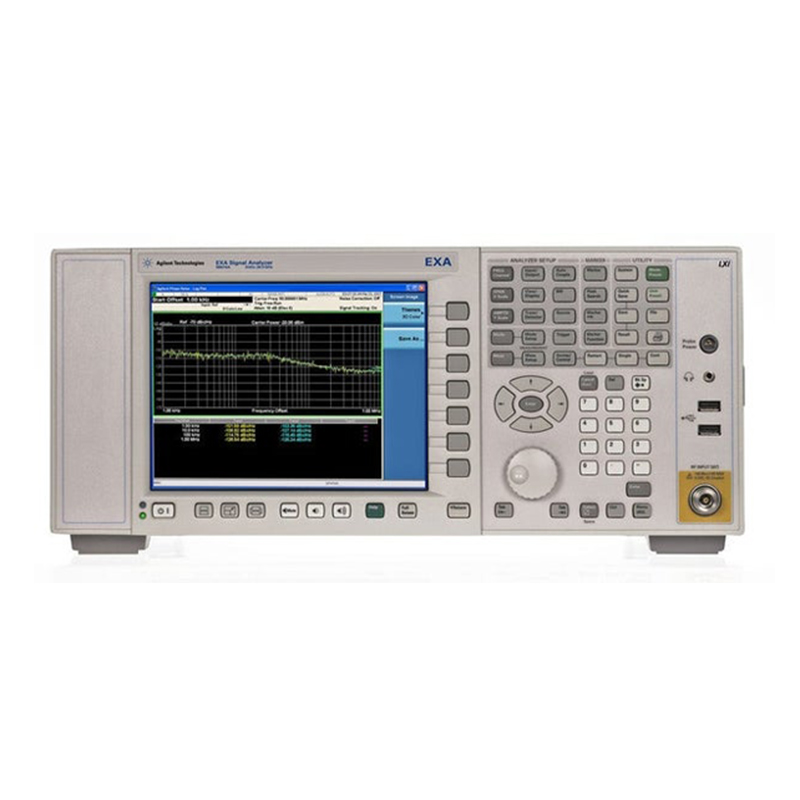

The EXA general purpose signal analyzer provides speed, performance, and flexibility to meet diverse needs, enhance products, improve test throughput, and face the most demanding millimeter-wave applications with a single tool. Quickly perform power measurements at discrete frequency points with list-sweep mode, reduce overall test time with 30-ms mode switching, and move more data or results in less time with the 1000Base-T LAN connection. For even greater functionality, you can upgrade the EXA with a higher-performance processor or a variety of software and measurement applications.

Optional measurement application software provides preconfigured test routines for GSM/EDGE, 802.16e Mobile WiMAX, W-CDMA, HSDPA/HSUPA, and phase-noise applications. Running the 89600 VSA software application in the EXA enables advanced signal demodulation analysis and troubleshooting of more than 50 demodulation formats including: 2G, 3G, 3.5G, WiMAX, WLAN and Private Mobile Radio.

Key Features:

• Resolution Bandwidth (RBW):1Hz to 3MHz in (10% steps), 4, 5, 6, 8 MHz
• DANL: -134 dBm in 10Hz RBW
• Analysis BW 10 MHz, units with option B25 will have 25 MHz bandwidth.
• Third Order Intercept (TOI): +9 dBm
• Phase Noise (1GHz Center Frequency):
  • -99 dBc at 10kHz offset
  • -130 dBc at 1MHz offset
• RF input connector: type N (f) 50 ohm

Resources

File Resources:

Keysight N9010A EXA X-Series Signal Analyzer Data Sheet
Keysight EXA X-Series Signal Analyzer N9010A Configuration Guide
