Product Overview

A great low-cost signal analyzer surpasses the basics and covers what’s essential. That’s the strength of the CXA signal analyzer, the leading low-cost tool for essential signal characterization. Its capabilities provide a foundation for cost-effective testing and seamless integration with the other X-Series models. The CXA is also an excellent teaching tool for RF technology and signal analysis. Get must-have capability with X-Series expandability in the CXA – and master the essentials.

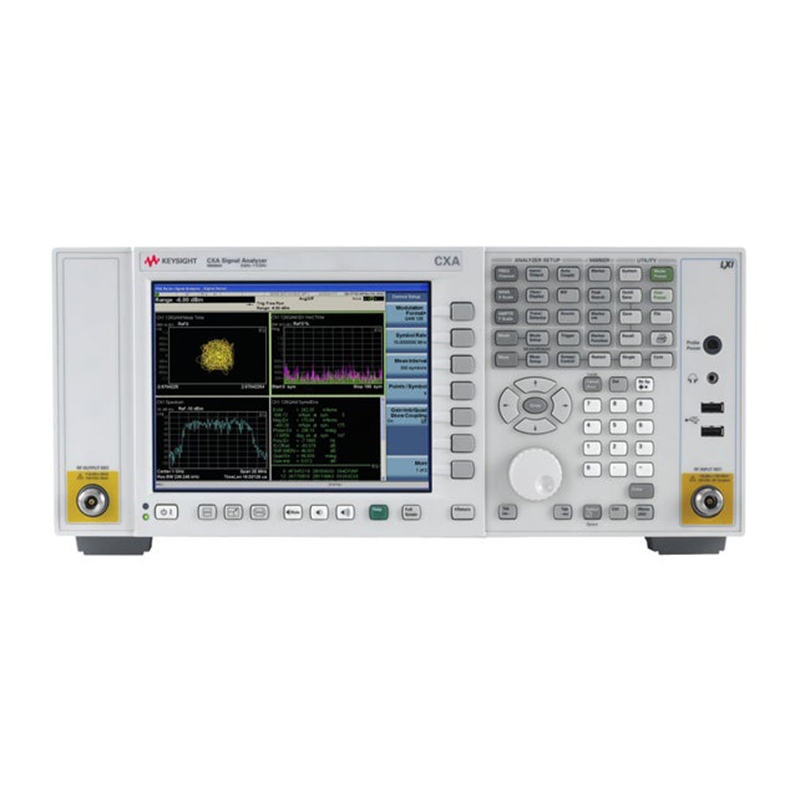

CXA signal analyzer is a versatile, low-cost tool for essential signal characterization. It helps you accelerate product testing and development on multiple levels; cost reduction, throughput, design enhancement and beyond.

Key Features:

• Master the essentials in signal characterization with the leading low-cost tool in signal analysis
• Perform cost-effective stimulus response measurements with optional built-in tracking generator
• Add crucial functionality with X-Series measurement applications for analog demodulation, noise figure, phase noise, vector signal analysis, EMI precompliance, and more
• Enhance theory with practical skills that enable deeper insights: use with a training kit in your RF & microwave education lab


Specifications:

• Frequency: 9 kHz to 26.5 GHz
• Frequency Options: 3, 7.5, 13.6, 26.5 GHz
• Standard Attenuator Range: 50 dB
• Standard Attenuator Step: 10 dB

Resources

File Resources:

N9000A Datasheet
