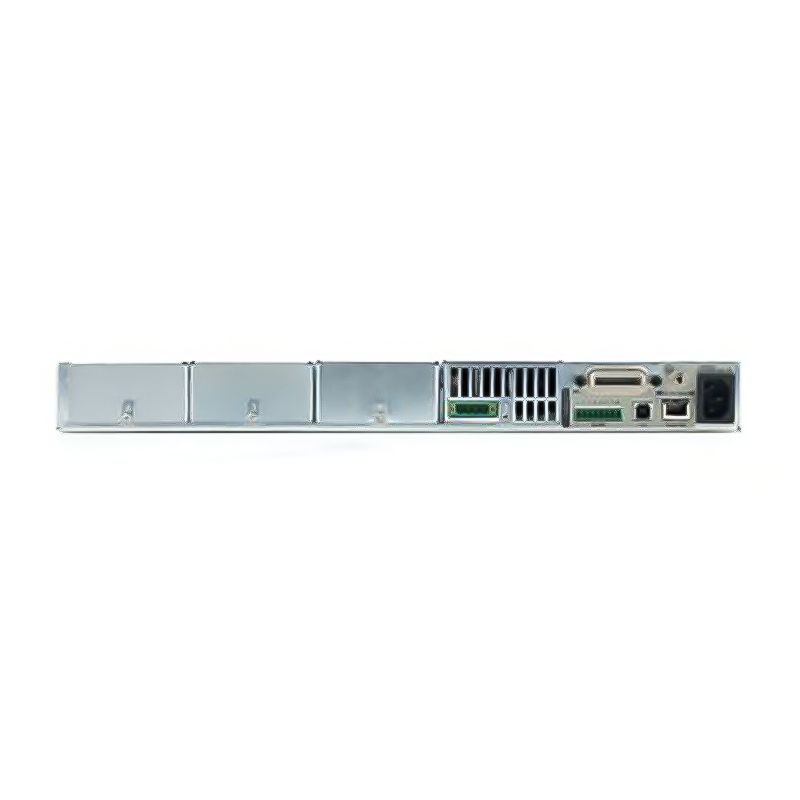

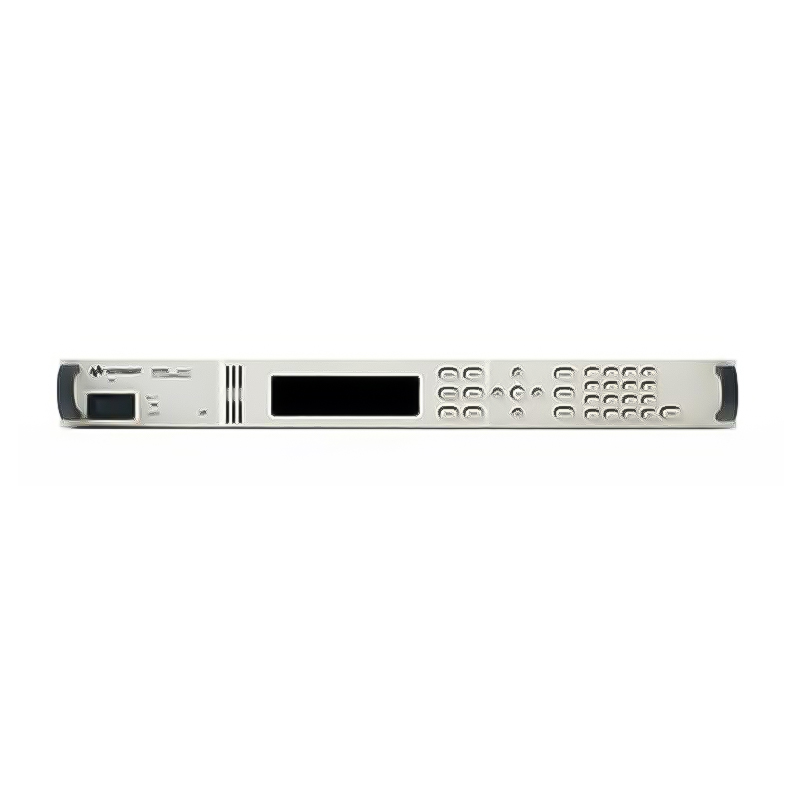

Keysight Technologies N6700B
| PRODUCT | Power Supply |
|---|---|
| MODEL | N6700B |
| PRODUCT SERIES | N6700 |
| MANUFACTURER | Keysight |
| DESCRIPTION | Low-Profile Modular Power System Mainframe, 400W, 4 Slots Power Supply |
SHARE ON:
Product Overview
Product Overview
Key Features & Specifications
Maximum Total Output Power (= Sum of Total Module Output Power)
- 400 W when operating from 100 – 240 VAC input
AC Input
- Nominal Input Ratings: 100 VAC – 240 VAC; 50/60/400 Hz
- Input Range: 86 VAC – 264 VAC
- Power Consumption: 1000 VA typical
- Fuse Internal fuse (not customer accessible)
Protection Response Characteristics
- INH input: 5 µs from receipt of inhibit to start of shutdown
- Fault on coupled outputs: < 10 µs (from receipt of fault to start of shutdown)
Description
The Keysight N6700B is a 400 W 1U high, 4-slot modular power system mainframe that accepts from 1 to 4 N6700 series DC power modules in any combination. Modules are ordered separately. The N6700B offers GPIB, LAN, and USB
