Product Overview

Overview:

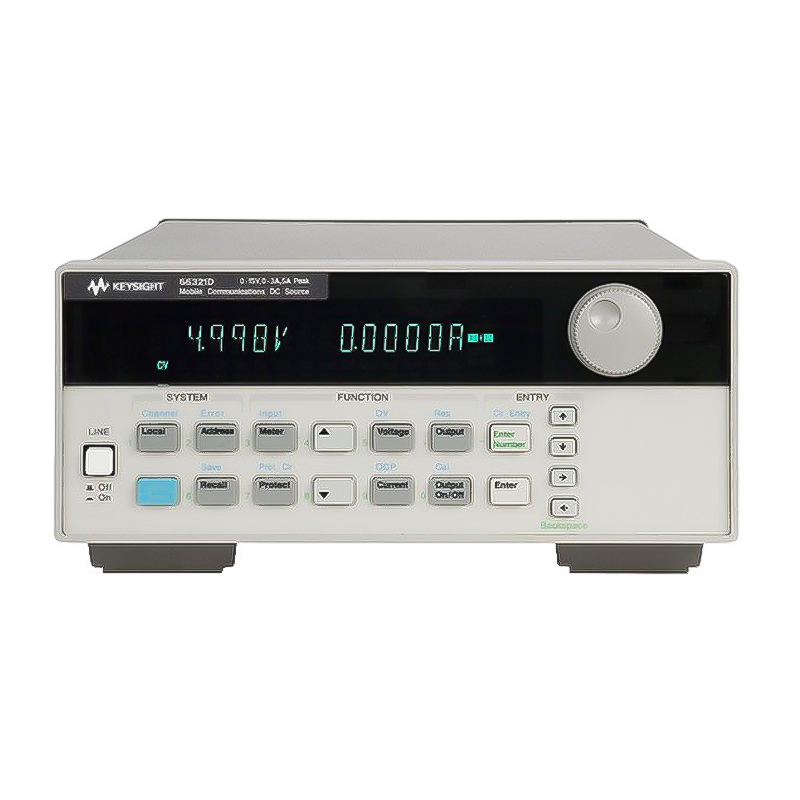

The Keysight Mobile Communications DC Source 663xx series offers several features ideal for testing wireless and battery powered devices. Excellent voltage transient response ensures maximum test-system throughput by minimizing device shutdowns due to significant voltage drops in the test wiring. Built-in advanced measurement system to accurately measure battery current drains when the device operates in different modes and a Keysight-developed feature that enables cellular telephone manufacturers to detect permanently and intermittently open-sense wire connections.

The Keysight 66309D dual output mobile communications dc source provides two outputs for testing both the main battery power and the battery charger circuitry, allowing customers to test phones and chargers with the same equipment. This feature helps save on rack space (2 outputs in a half rack box) and eliminates the need for two separate power supplies.The 66309D dc source provides all of the capabilities of the 66309B with the addition of a built in digital voltmeter.

Key Features & Specifications
Notice for European Union Customers: This product is not updated to EU RoHS compliance, therefore Keysight will only continue to sell this product to EU member states until 31 December 2016. Please contact your local sales representative for questions and recommended alternative product(s).

Output Ratings

• Voltage: 0 to 15 V
• Current: 0 to 3 A
• Peak Current for up to 7 ms: 5 A


Programming accuracy at 25?XC ??5?XC

• Voltage: 0.05%+ 10 mV
• + Current: 0.05%+ 1.33 mA


DC Readback Accuracy

• Voltage: 0.03% + 5 mV
• Current (+20 mA to + rated current): 0.2% + 0.5 mA
