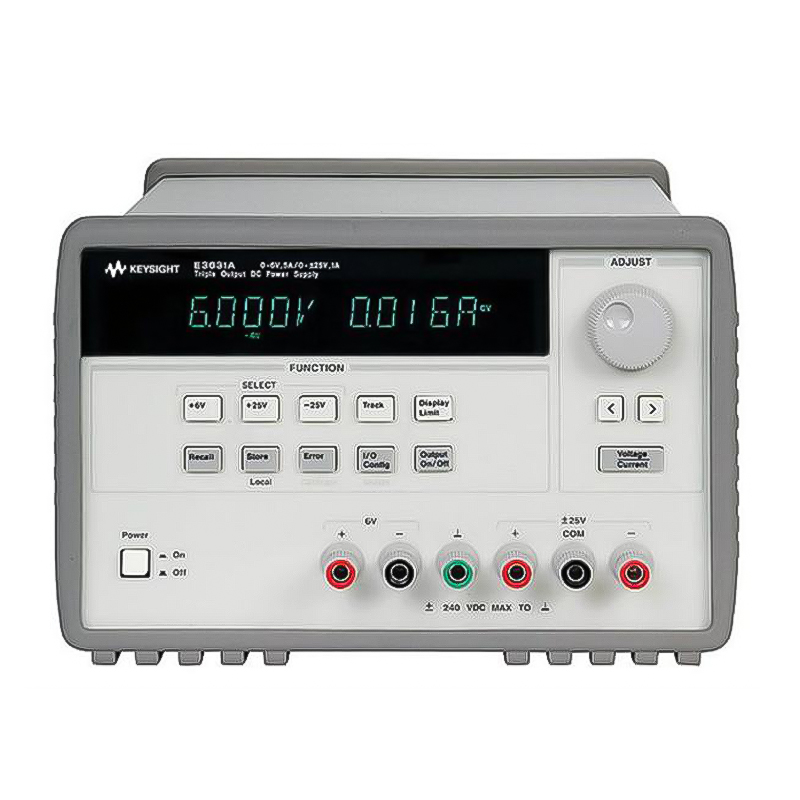

Keysight Technologies E3631A
| PRODUCT | Power Supply |
|---|---|
| MODEL | E3631A |
| PRODUCT SERIES | E363xA |
| MANUFACTURER | Keysight |
| DESCRIPTION | E3631A 80W Triple Output Power Supply, 6V, 5A & ±25V, 1A Power Supply |
SHARE ON:
Product Overview
Product Overview
Overview:

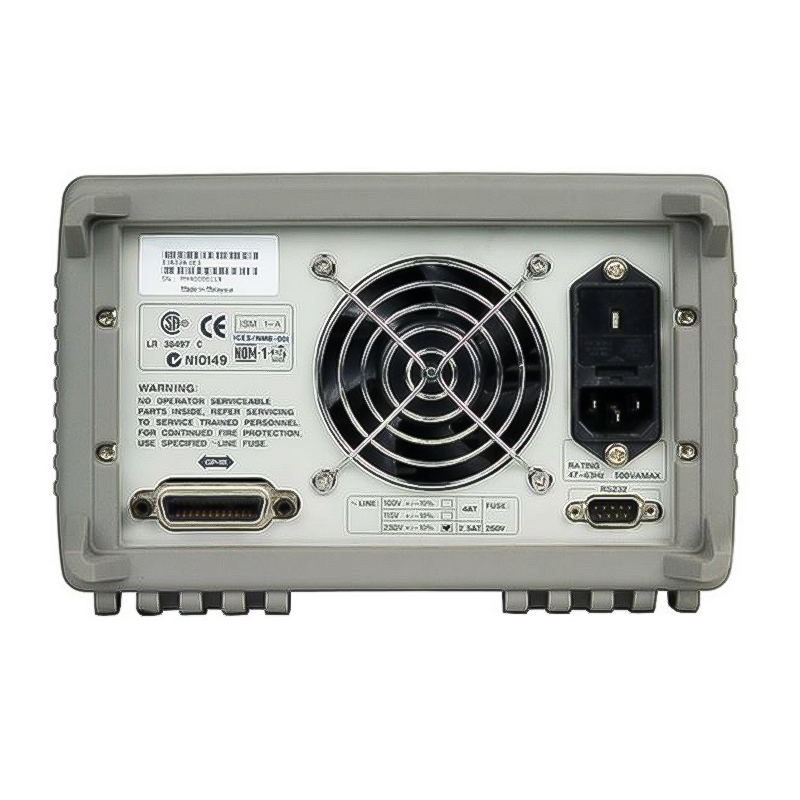

Keysight basic DC power supplies offer essential features for a tight budget. The triple output, 80 W, GPIB, E3631A provides small, compact size for bench use; low output ripple and noise; built-in measurements and basic programmable features with GPIB and RS232 interface. This clean and reliable supply is designed for general purpose applications; and combines convenient benchtop capabilities with flexible system features in a compact, multi-output package.
Key Features & Specifications
Output Ratings
- Output 1: 0 to 6 V, 0 to 5 A
- Output 2: 0 to +25 V, 0 to 1 A
- Output 3: 0 to -25 V, 0 to 1 A
Programming Accuracy at 25ºC ±5ºC
- Voltage: 0.05% + 20 mV, 0.05% + 20 mV, 0.1% + 5 mV
- + Current: 0.15% + 4 mA, 0.15% + 4 mA, 0.2% + 10 mA
