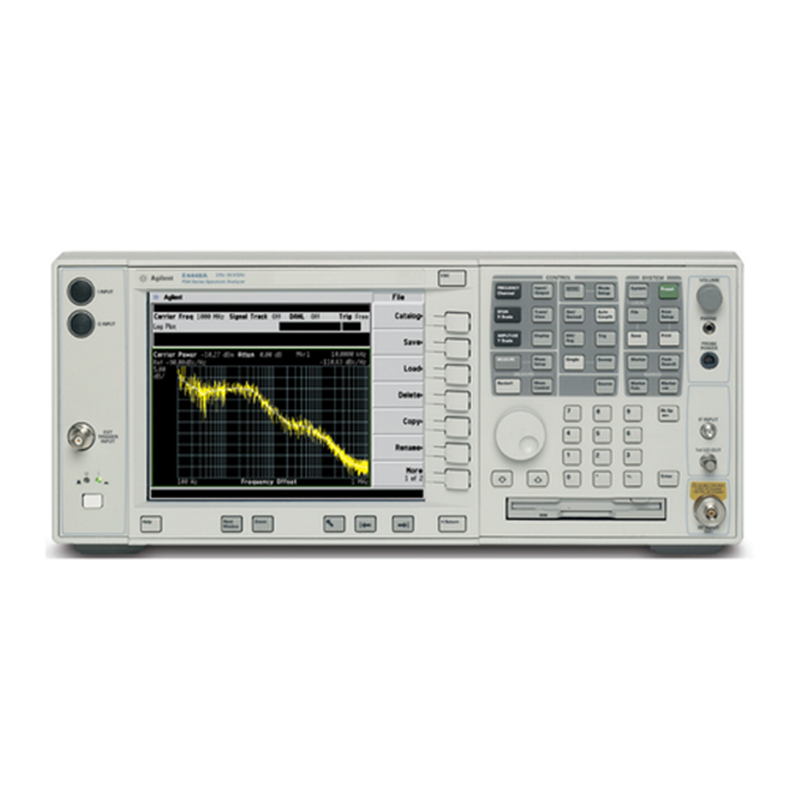

Keysight Technologies E4446A
| PRODUCT | Spectrum Analyzer |
|---|---|
| MODEL | E4446A |
| PRODUCT SERIES | PSA |
| MANUFACTURER | Keysight |
| DESCRIPTION | 3 Hz to 44 GHz Spectrum Analyzer (Signal Analyzer) |
SHARE ON:
Product Overview
Product Overview
The Keysight E4446A PSA high-performance spectrum analyzer measures and monitors complex RF, microwave, and millimeter-wave signals up to 44 GHz. With optional external mixing, the frequency coverage extends to 110 GHz with the Agilent external mixer, and to 325 GHz with other vendors’ mixers.
Specifications:
- Frequency: 3 Hz to 44 GHz, External Mixers to 325 GHx
- Standard Attenuator Range: 70 dB
- Standard Attenuator Step: 2 dB
- DANL @1 GHz: -168 dBm
- Maximum Analysis Bandwidth: 80 MHz
- Phase Noise @1 GHz (1 MHz offset): -147 dBc/Hz
- Phase Noise @1 GHz (10 kHz offset): -118 dBc/Hz
- TOI @1 GHz (3rd Order Intercept): +20 dBm
