Product Overview

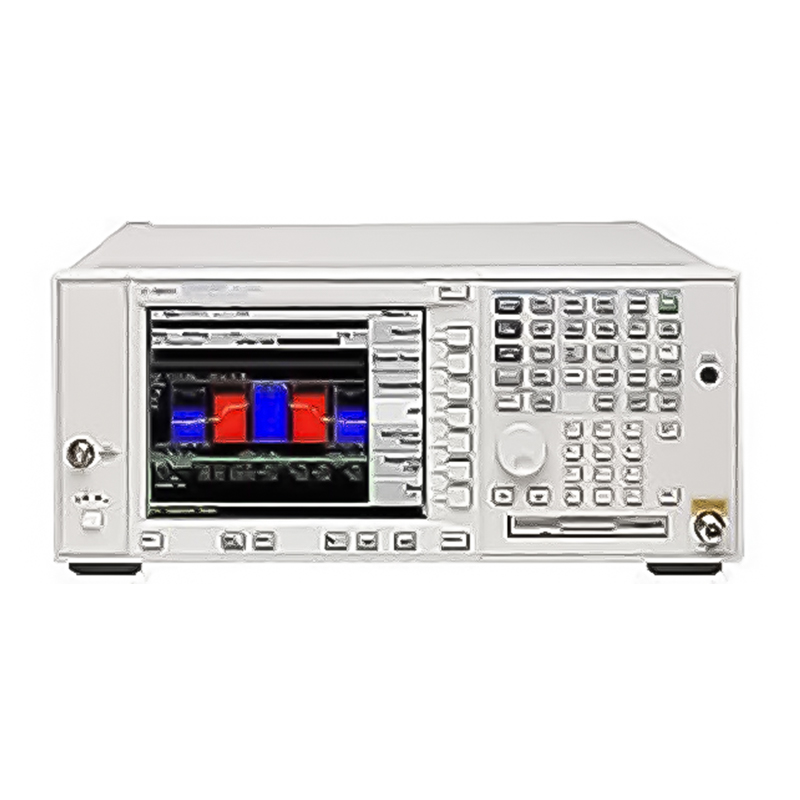

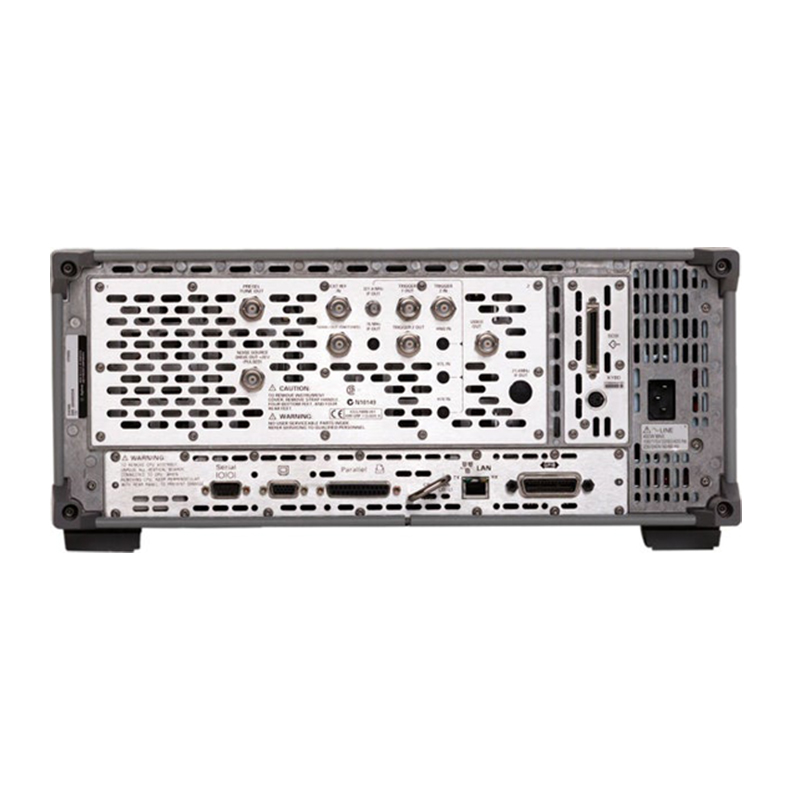

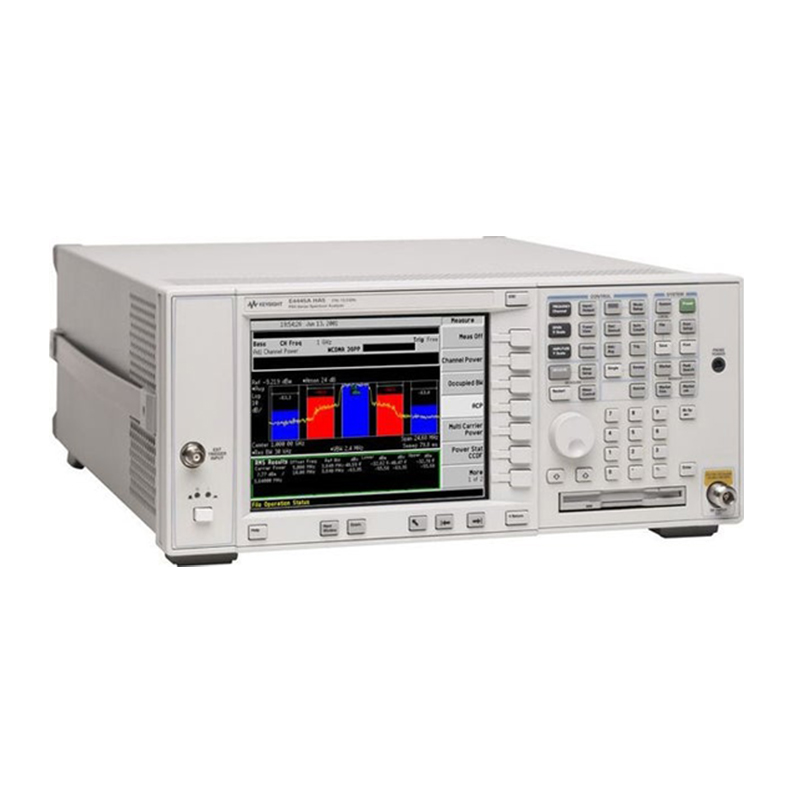

The Agilent E4445A PSA high-performance spectrum analyzer measures and monitors complex RF signals up to 13.2 GHz. Migration from PSA to PXA:

The PXA N9030A, Agilent’s next-generation high-performance signal analyzer, combines the PSA’s technical excellence with state-of-the-arts technologies, making it a logical form-fit-functional replacement for the PSA. The PXA N9030A offers wider analysis bandwidth and more powerful connectivity.

Key Features:

• Signal analysis capabilities with up to 80 MHz analysis bandwidth, +/-0.19 dB absolute amplitude accuracy, -155 dBm DANL, -118 dBc/Hz phase noise at 10 kHz offset, and 81 dB W-CDMA ACLR dynamic range
• Address application-specific requirements with capabilities including 16 measurement personalities and one-button measurement simplicity


Specifications:

• Frequency: 3 Hz to 13.2 GHz
• Standard Attenuator Range: 70 dB
• Standard Attenuator Step: 2 dB
• DANL @1 GHz: -169 dBm
• Maximum Analysis Bandwidth: 80 MHz
• Phase Noise @1 GHz (1 MHz offset): -147 dBc/Hz
• Phase Noise @1 GHz (10 kHz offset): -118 dBc/Hz
• TOI @1 GHz (3rd Order Intercept): +19 dBm

Resources

File Resources:

Keysight Agilent E4445A PSA Series Spectrum Analyzers Data Sheet
