Product Overview

Key Features and Specifications

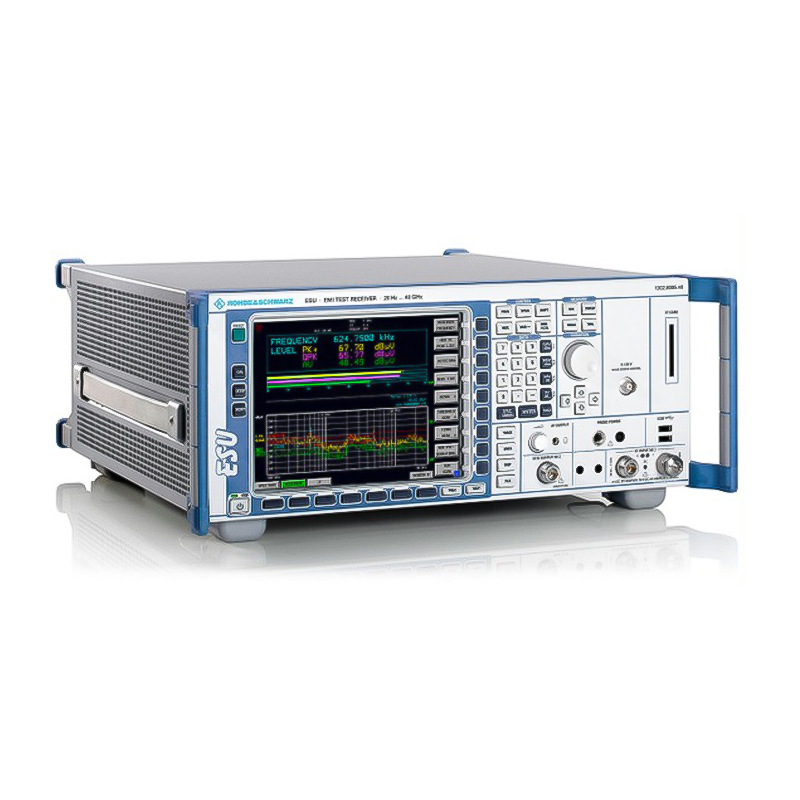

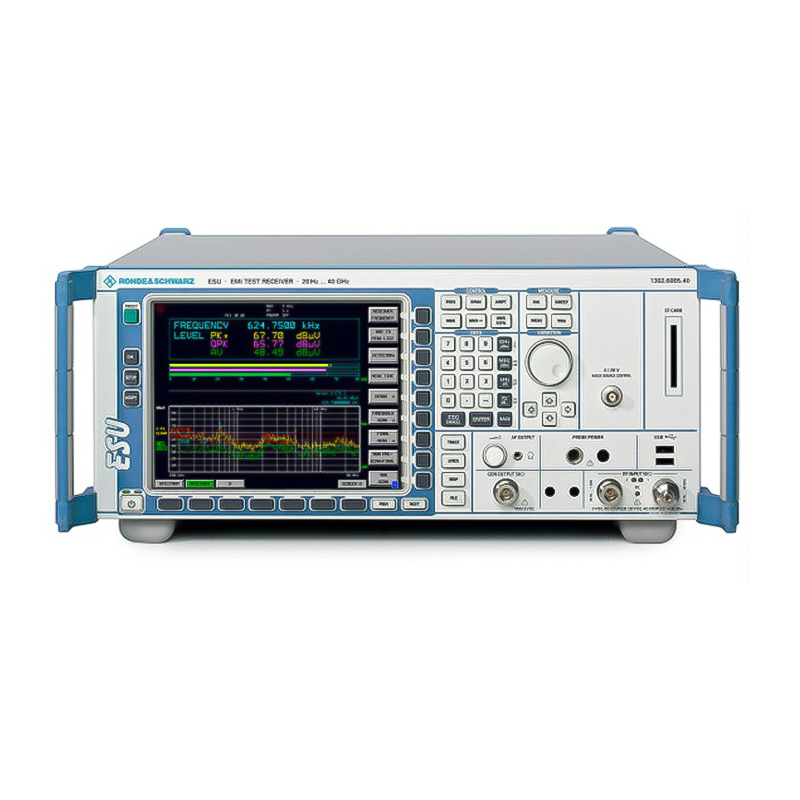

R&S®ESU8 EMI Test Receiver 20 Hz to 8 GHz
Maximum-precision, standard-compliant EMI measurements at unparalleled measurement speed

• Combination of CISPR 16-compliant EMI test receiver and high-end spectrum analyzer
• High speed time domain scan (FFT) option
• All commercial and military standards met
• Internal preselection (can be switched off in analyzer mode)
• Integrated 20 dB preamplifier up to 3.6 GHz as standard
• Receiver mode with parallel IF analysis
• Frequency scan with max. three detectors in parallel (max. 2 million test points/trace)
• Second RF input (max. 1 GHz, pulse-protected)
• Time-domain analysis for evaluation of timing behavior of disturbances (e.g. click-rate analysis)
• Fast and reliable measurements using automatic and interactive test routines
• Integrated report generator
• Optional low-noise preamplifiers up to 8/26.5/40 GHz (R&S®ESU-B24)


Description
The R&S®ESU is a family of CISPR 16-1-1-compliant EMI test receivers that meet all civil and military standards for electromagnetic disturbance measurements. The R&S®ESU-K53 FFT-based time-domain scan option allows users to perform overview measurements up to 1000 times faster than on standard EMI test receivers. The R&S®ESU also features automatic and interactive measurement functions, parallel IF analysis and up to three detectors in parallel including the average detector with meter time constant (CISPR-Average), RMS-Average detector, and APD (amplitude probability distribution to CISPR 16).

Additional Features and Benefits

• Full compliance with CISPR 16-1-1 standard
• Complex, internal preselection
• (can be switched off in analyzer mode)
• Integrated 20 dB preamplifier up to 3.6 GHz as standard
• Integrated low-noise 30 dB preamplifier up to 40 GHz optional available
• Wide choice of detectors incl. CISPR-AVG and CISPR-RMS
• CISPR- and MIL-STD-compliant measurement bandwidths
• User-programmable scan tables (max. 10 subranges)
• Frequency scan with max. three detectors in parallel (max. 2 million test points/trace)
• Second RF input (max. 1 GHz, pulse-protected)
• Time-domain measurements (max. 2 million test points, measurement time =10 µs/point)
• Fully and partially automatic measurements (preview measurement, data reduction, final measurement)


Spectrum analyzer

• Maximum dynamic range and minimum phase noise
• Sweep time – for span >10 Hz: 2.5 ms to 16 000 s – for zero span: 1 µs to 16 000 s
• Resolution bandwidths 10 Hz to 10 MHz in steps of 1/2/3/5
• FFT, RRC and channel filters
• Versatile and comprehensive evaluation facilities for lab applications (time-domain power, IP3 marker, noise/phase noise marker, channel/adjacent-channel measurements)


Wide-ranging functionality

• Correction values (cable loss, antenna transducers) automatically taken into account, user-programmable transducer sets

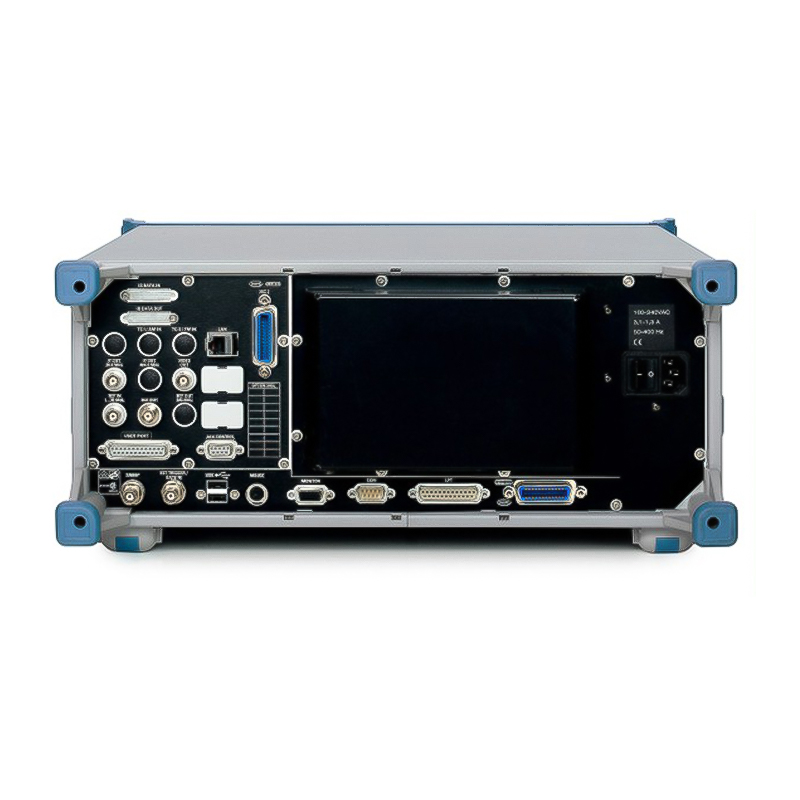

• Saving of settings and test results on internal hard disk or via LAN or USB interface (on front and rear panels)
• Modern processor technology (Celeron M, Windows XP Embedded) and networking (GPIB, LAN, USB), Remote Desktop function
• Remote control via GPIB or LAN
• Drivers for LabView, LabWindows/CVI, VXI Plug & Play Instrument
• Compact design (weight approx. 16 kg)
