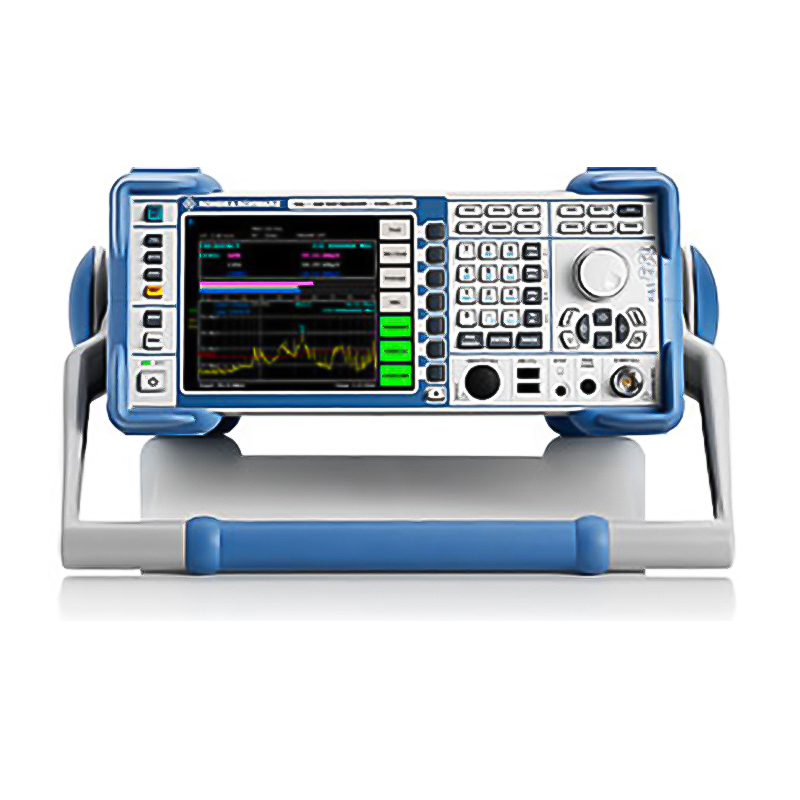

Rohde and Schwarz ESL3
| PRODUCT | Spectrum Analyzer/EMI Test Receiver |
|---|---|
| MODEL | ESL3 |
| PRODUCT SERIES | ESL |
| MANUFACTURER | Rohde and Schwarz |
| DESCRIPTION | 9kHz To 3GHz EMI Test Receiver |
SHARE ON:
Product Overview
Product Overview
9kHz To 3GHz EMI Test Receiver
The R&S ESL EMI test receiver combines two instruments in one, measuring EMC disturbances in accordance with the latest standards and also serving as a full-featured spectrum analyzer for diverse lab applications. The R&S ESL is the ideal instrument for small budgets.
- Frequency range from 9 kHz to 3 GHz or 9 kHz to 6 GHz covering almost all commercial EMC standards
- First-ever combination of an EMI test receiver and spectrum analyzer in the economy class
- All major functions of an advanced EMI test receiver, including fully automated test sequences
- Weighting detectors: max./min. peak, average, RMS, quasi-peak as well as average with meter time constant and rms-average in accordance with the latest version of CISPR 16-1-1
- Compact, lightweight instrument, can be battery-powered for mobile applications
