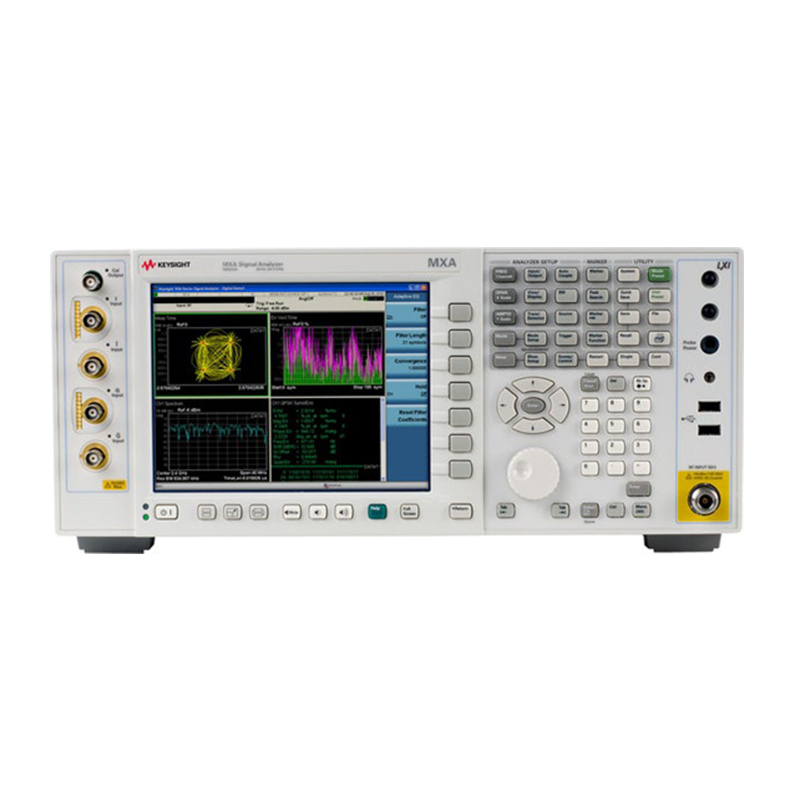

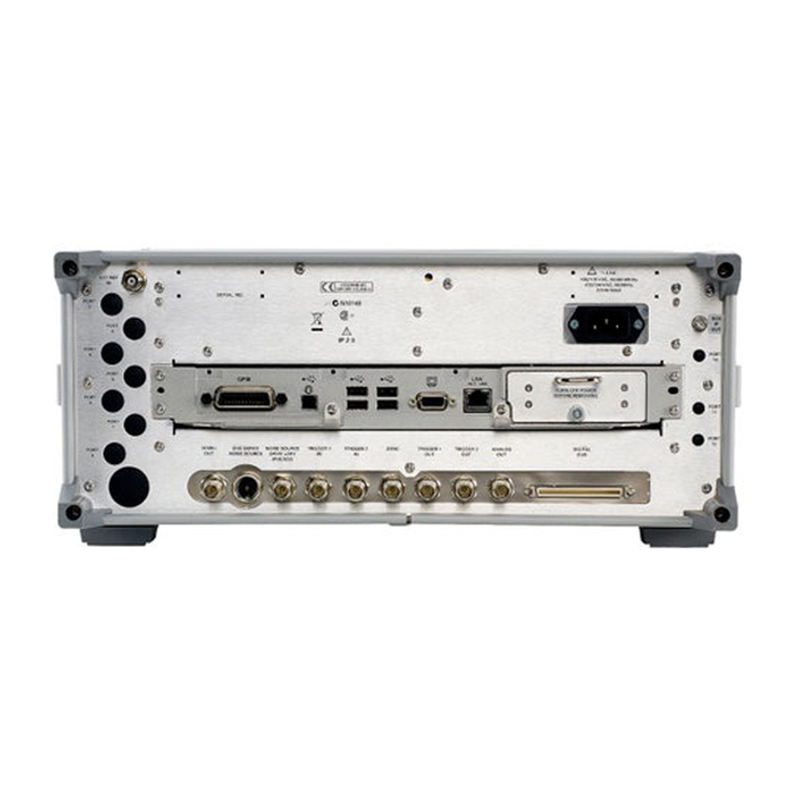

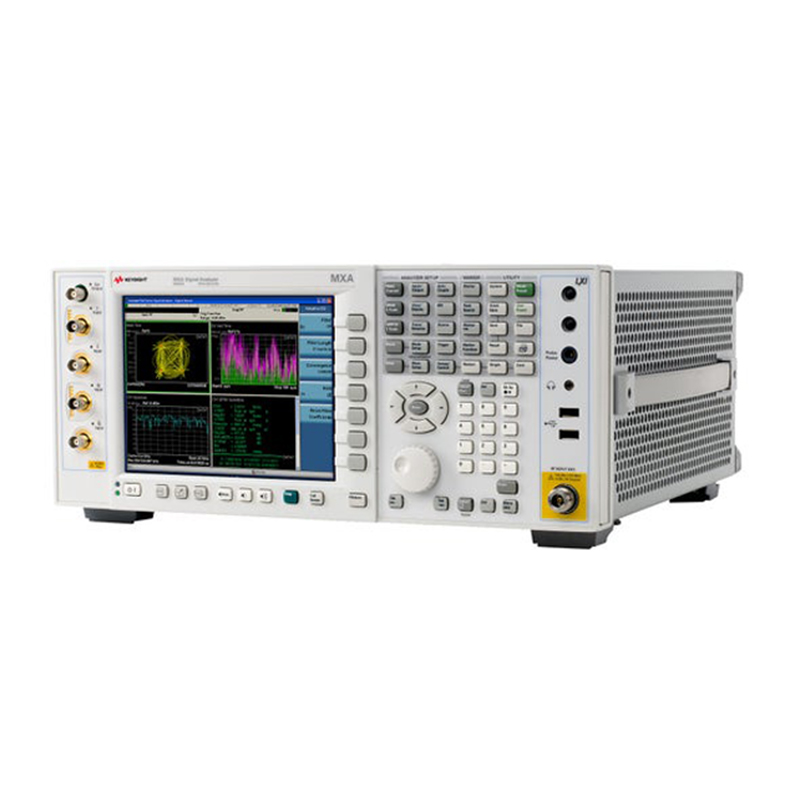

Product Overview

From‌ ‌10‌ ‌Hz‌ ‌to‌ ‌26.5‌ ‌GHz,‌ ‌the‌ ‌MXA‌ ‌is‌ ‌built‌ ‌for‌ ‌speed:‌ ‌it‌ ‌helps‌ ‌you‌ ‌shorten‌ ‌test‌ times‌ ‌with‌ ‌capabilities‌ ‌such‌ ‌as‌ ‌rapid‌ ‌local‌ ‌measurements,‌ ‌display‌ ‌updates,‌ ‌and‌ ‌marker‌ ‌peak‌ ‌searches.‌ Fast‌ ‌sweep‌ ‌speed‌ ‌optimizes‌ ‌your‌ ‌spurious‌ ‌measurements.‌ ‌It’s‌ ‌also‌ ‌built‌ ‌for‌ ‌performance:‌ ‌you‌ ‌can‌ ‌accurately‌ ‌characterize‌ ‌device‌ ‌performance‌ ‌by‌ ‌measuring‌ ‌small‌ ‌signals‌ ‌in‌ ‌the‌ ‌presence‌ ‌of‌ ‌large‌ ‌ones‌ ‌with‌ ‌up‌ ‌to‌ ‌116‌ ‌dB‌ ‌(typical)‌ ‌third-order‌ ‌dynamic‌ ‌range.‌ ‌The‌ ‌best-in-class‌ ‌phase‌ ‌noise‌ ‌(–114‌ ‌dBc/Hz‌ ‌at‌ ‌10‌ ‌kHz‌ ‌offset)‌ ‌enables‌ ‌you‌ ‌to‌ ‌achieve‌ ‌the‌ ‌lowest‌ ‌internal‌ ‌EVM‌ ‌floor‌ ‌for‌ ‌cellular‌ communication‌ ‌standards‌ ‌like‌ ‌LTE.‌ ‌With‌ ‌deep‌ ‌capture‌ ‌memory,‌ ‌you‌ ‌can‌ ‌perform‌ thorough‌ ‌signal‌ ‌characterization‌ ‌by‌ ‌capturing‌ ‌longer‌ ‌I/Q‌ ‌samples‌ ‌from‌ ‌signals under-test.‌

Key Features:

• Accelerate the development of wireless devices with the speed, performance & applications to adapt to evolving test requirements
• Shorten test times with rapid local measurements, display updates, marker peak searches & fast sweep
• Simplify testing with fast one-button measurements from X-Series apps: LTE, WLAN, MSR & more
• Capture elusive or transient signals with full-band real-time spectrum analysis
• Perform deeper troubleshooting with the 89600 VSA software


Benefits:

• Frequency Ranges:
  • Minimum: 10 Hz , Maximum: 3.6, 8.4, 13.6, 26.5 GHz
  • Analysis bandwidth 25 MHz standard; 40, 85, 125 or 160 MHz optional
• Featured Specifications:
  • Displayed average noise level (DANL): –166 dBm at 1 GHz, with preamplifier on
  • Third-order intermodulation (TOI) distortion: +20 dBm at 1 GHz
  • W-CDMA ACLR dynamic range 78 dBc with noise correction on
  • Phase noise –114 dBc/Hz at 10 kHz offset (1 GHz carrier)
  • Amplitude accuracy ± 0.23 dB (up to 3.6 GHz)
  • Real-time bandwidth 85, 125, or 160 MHz
  • Probability of intercept 100% with signal durations as short as 3.57 µs


Specifications:

• Frequency: 10 Hz to 26.5 GHz
• Frequency Options: 3.6, 8.4, 13.6, 26.5 GHz, Mixers to 1.1 THz
• Standard Attenuator Range: 70 dB
• Standard Attenuator Step: 2 dB
