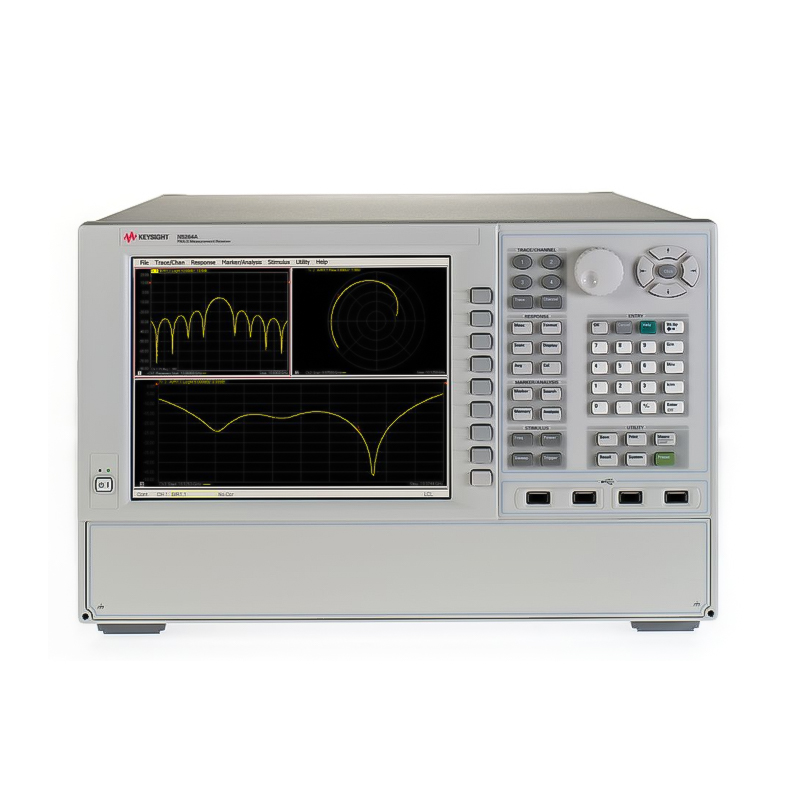

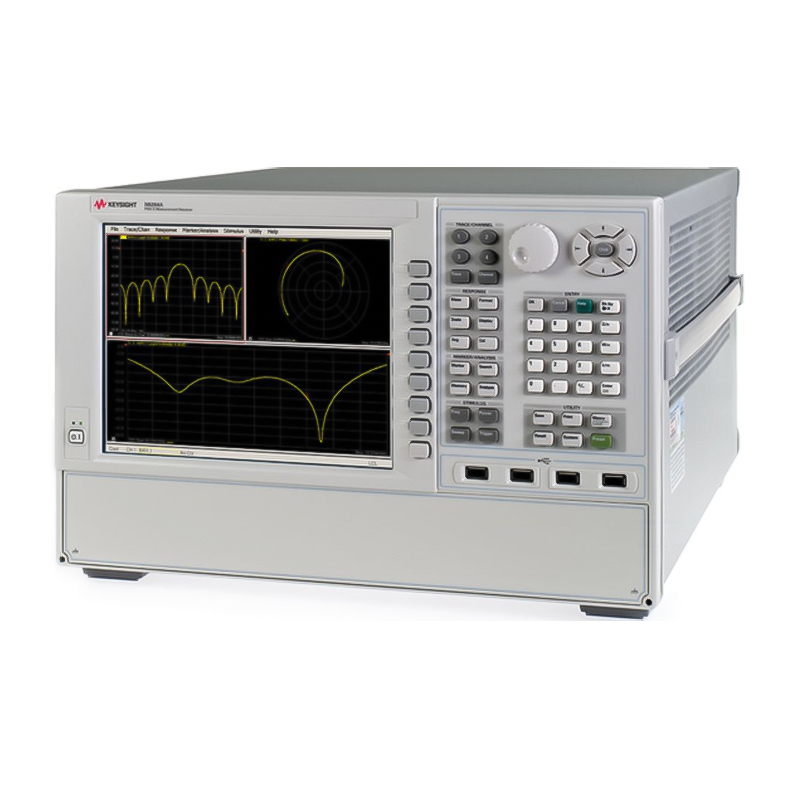

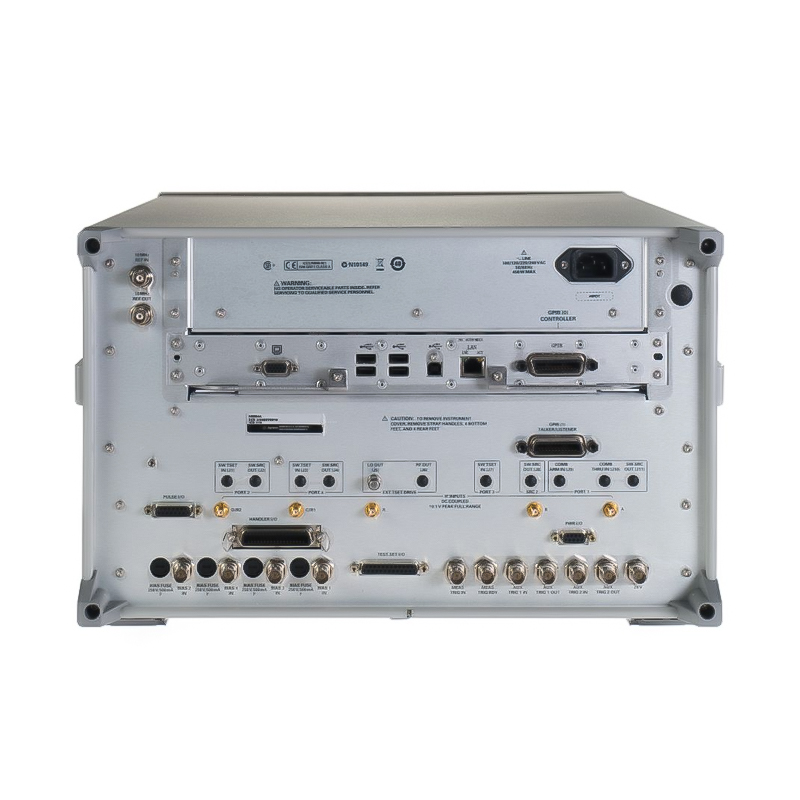

Product Overview

Overview

• Reach for unrivaled excellence in your measurements and designs
• Simplify your test stations by replacing racks and stacks of equipment
• Increase productivity with the most integrated and flexible single-connection microwave test engine
• Reduce test time with the world’s widest range of single-connection measurement applications
• Test linear and nonlinear device characterization more accurately with the world’s best PNA-X


Specifications

• Maximum Frequency: 50 GHz
• Dynamic Range: 124 dB
• Output Power: 13 dBm
• Trace Noise: 0.002 dBrms
• Number of Built-In Ports: 2 or 4 ports
• Harmonics: -60 dBc
• Noise Floor: -111 dBm
• Best Speed at 201 Point, 1 Sweep: 5.5 ms
• Network Analyzer Series: PNA-X Most Advanced and Flexible
• Instrument Type: Vector Network Analyzer
• Applications:
  • Balance Measurements
  • Gain Compression
  • IMD
• Components:
  • Antennas
  • Mixers/Frequency Converters
  • Amplifiers
• Benchtop: Yes
