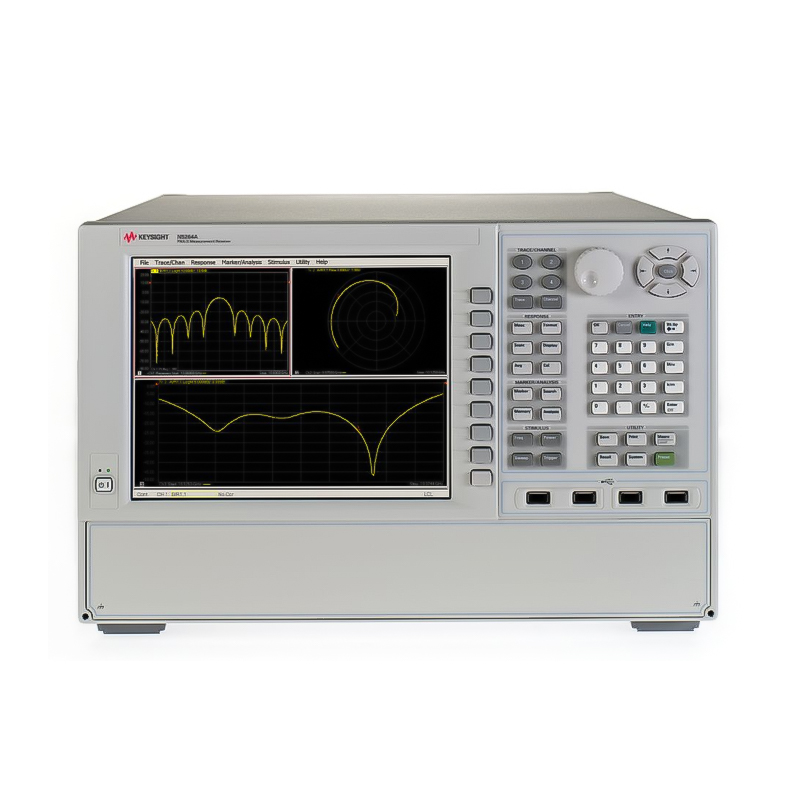

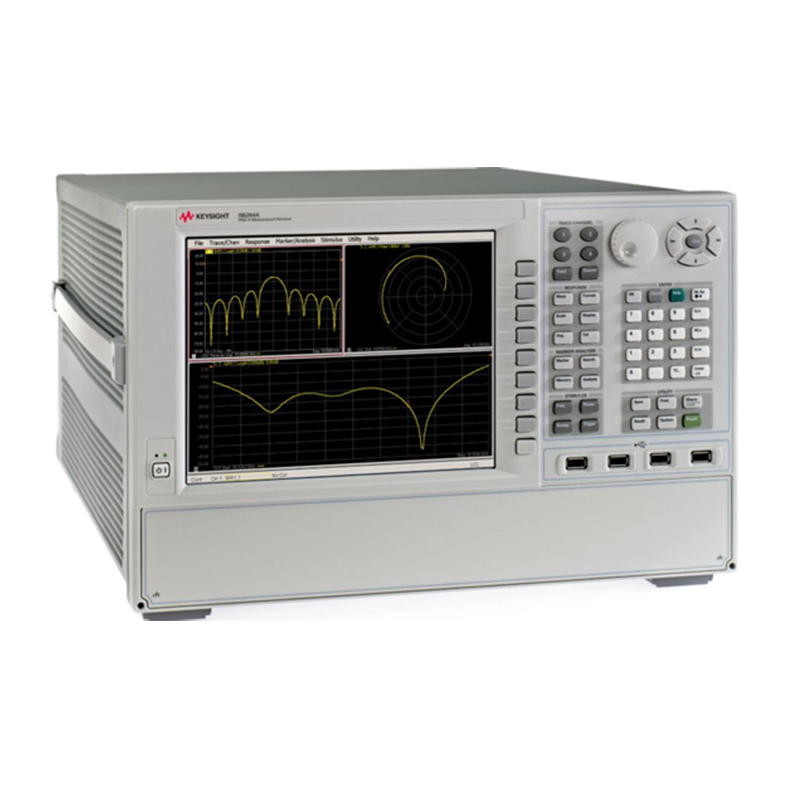

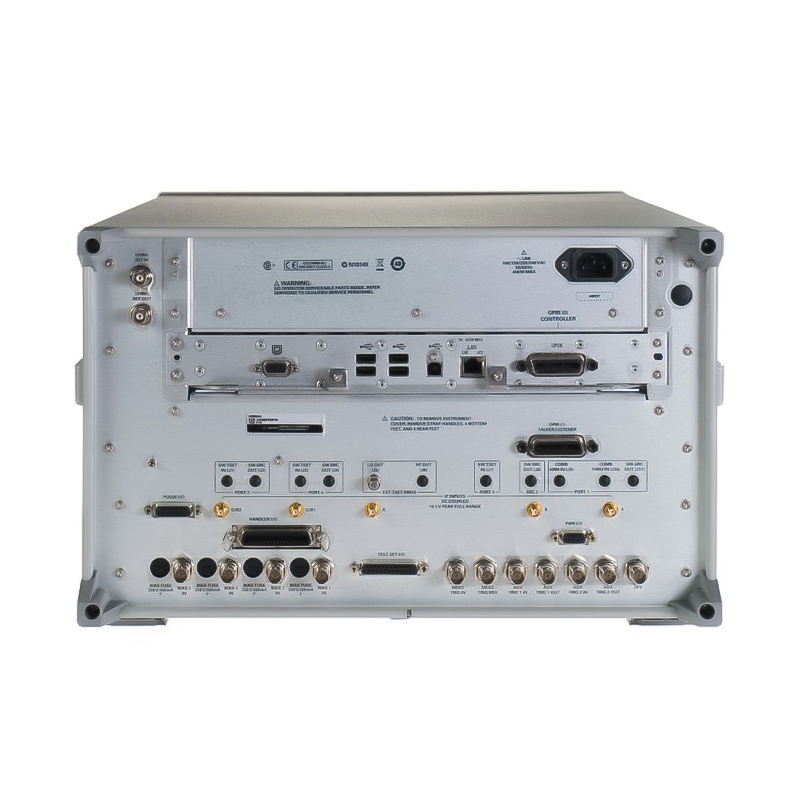

Keysight Technologies N5221A


PRODUCT Vector Network Analyzer
MODEL N5221A
PRODUCT SERIES PNA
MANUFACTURER Keysight
DESCRIPTION PNA Network Analyzer, 10 MHz to 13.5 GHz
Clear
SKU: N/A Category:
SHARE ON:

Product Overview

Overview

  • Reach for unrivaled excellence in your measurements and designs
  • Transform deeper understanding into better designs with the PNA’s outstanding measurement integrity
  • Meet your toughest measurement challenges with the highest performing microwave network analyzer in the industry
  • Get the best accuracy with Keysight’s S-parameter measurements
  • Meet your specific budget and measurement needs by customizing to just the right level of performance


Specifications

  • Maximum Frequency: 13 GHz
  • Dynamic Range: 127 dB
  • Output Power: 13 dBm
  • Trace Noise: 0.002 dBrms
  • Number of Built-In Ports: 2 or 4 ports
  • Harmonics: -19 dBc
  • Noise Floor: -114 dBm
  • Best Speed at 201 Point, 1 Sweep: 6.3 ms
  • Network Analyzer Series: PNA High Performance
  • Instrument Type: Vector Network Analyzer
  • Applications: n/a
  • Components:
    • Antennas
    • Mixers/Frequency Converters
    • Amplifiers
  • Benchtop: Yes

Resources

File Resources:

Keysight Agilent 2-Port and 4-Port PNA Network Analyzer Data Sheet and Technical Specifications
