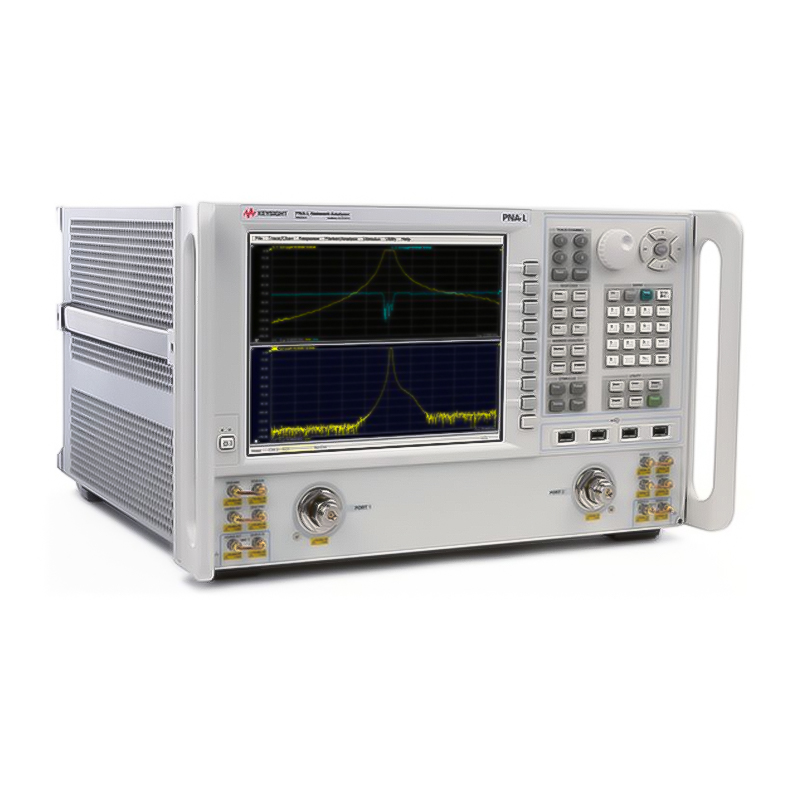

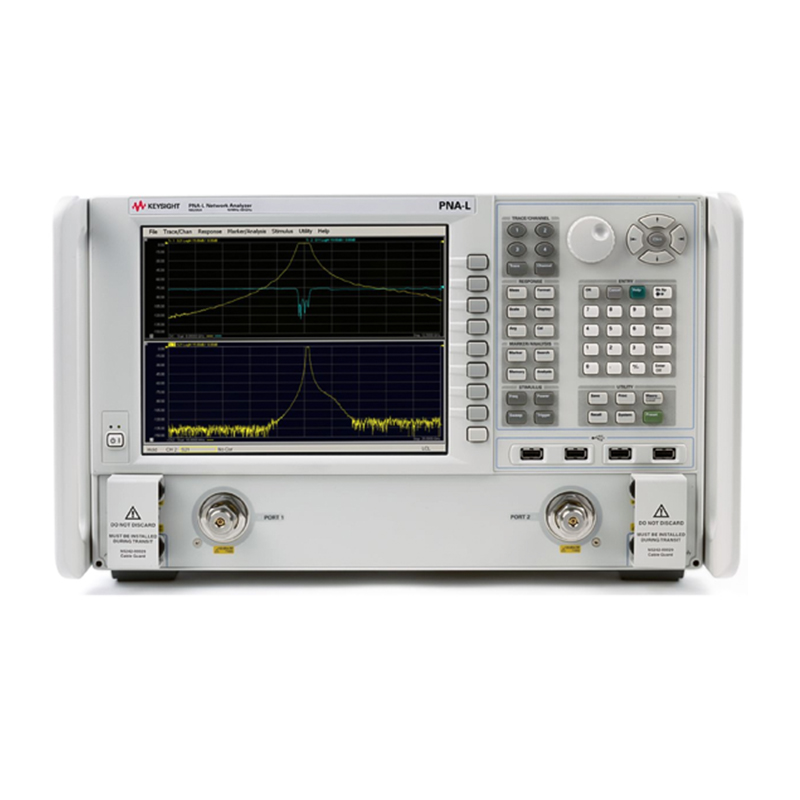

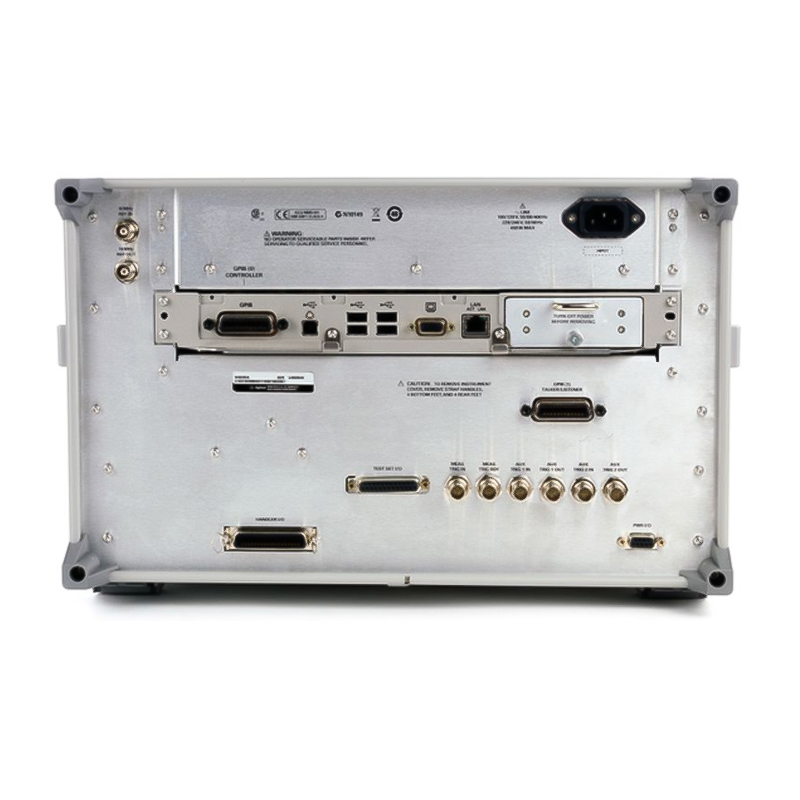

Product Overview

Overview

• Giving you an edge with the right mix of speed and performance
• Achieve greater yields and tighter guard bands with Keysight’s highest-performance mid-range VNA
• Transform great designs into competitive products with better throughput and repeatability
• Perform fast, accurate S-parameter measurements with future-proof capabilities
• Get the world’s best price-to-performance ratio for microwave manufacturing


Specifications

• Maximum Frequency: 50 GHz
• Dynamic Range: 122 dB
• Output Power: 6 dBm
• Trace Noise: 0.003 dBrms
• Number of Built-In Ports: 2 or 4 ports
• Harmonics: -33 dBc
• Noise Floor: -116 dBm
• Best Speed at 201 Point, 1 Sweep: 6 ms
• Network Analyzer Series: PNA-L Economy
• Instrument Type: Vector Network Analyzer
• Components:
  • Cables
  • Filters
• Benchtop: Yes

Resources

File Resources:

Keysight 2-Port PNA-L Network Analyzer N5234A/N5235A Data Sheet and Technical Specifications
