Product Overview

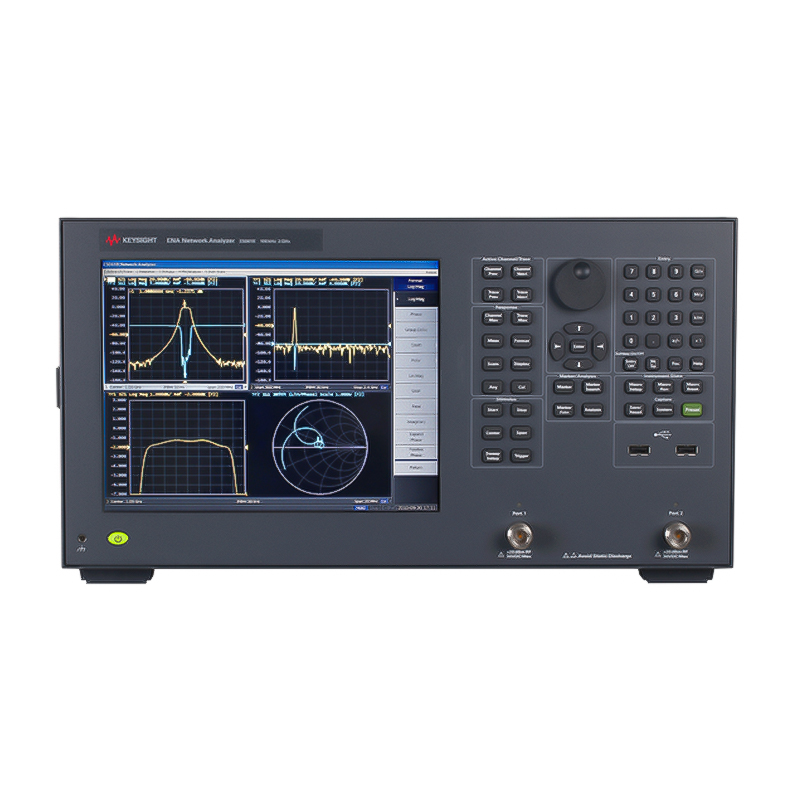

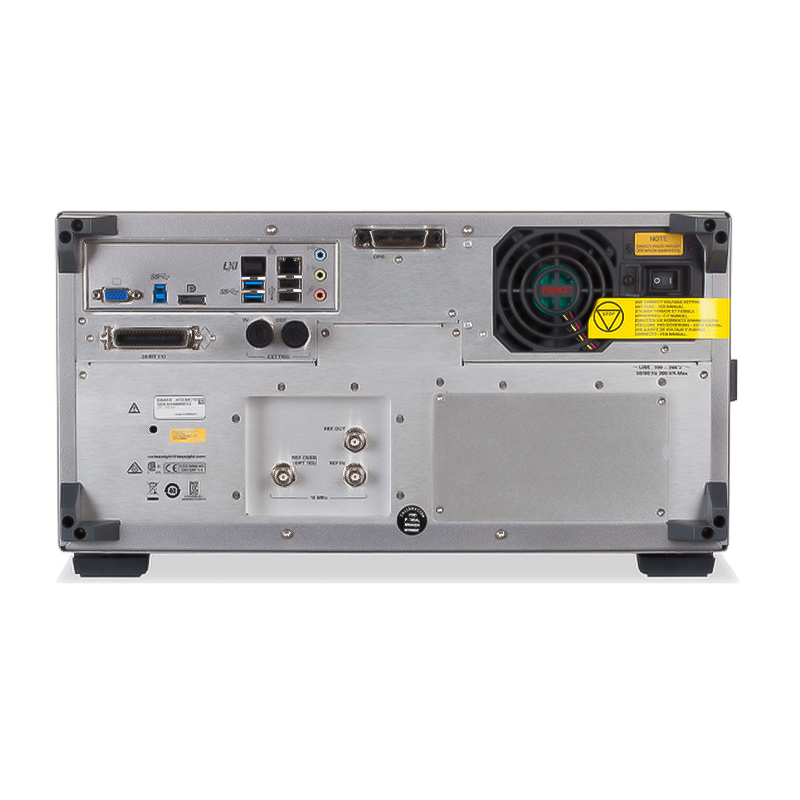

The Keysight Technologies, Inc. E5061B is a member of the industry standard ENA Series network analyzers. The E5061B addresses a broad range of measurement needs of electronic components and circuits from low to high frequencies. The E5061B is the ideal solution for applications in industries such as wireless communications, aerospace and defense, computer, medical, automotive, CATV, plus many more. The E5061B now provides a new standard of frequency-domain device analysis from 5 Hz to 3 GHz.

Key Features:

• Select the best configuration for your test needs from a wide variety of test set options: 100 kHz to 1.5 GHz/ 3 GHz, 2-port, 50 or 75 ohm, transmission/reflection or S-parameter test set
• Address a broad range of applications with the LF-RF option (Option 3L5/3L4/3L3): 5 Hz to 3 GHz, 2-port, 50 ohm, S-parameter test set, gain-phase test port, built-in DC bias source
• Combine network analysis and impedance analysis to customize your application in a single instrument (Option 3L5/3L4/3L3 plus 005)


Specifications:

• MAXIMUM FREQUENCY: 3 GHZ
• Dynamic Range: 120 dB
• Output Power: 10 dBm
• Number of Built-In Ports: 2 ports
• Harmonics: -25 dBc
• Best Speed at 201 Point, 1 Sweep: 9 ms
• Components:
  • Cables
  • Amplifiers
  • Resonators
  • DC-DC Converters/PDNs
  • Antenna/Coil/RFIDs
  • Filters
  • LCR Components
• Operating System: Windows 10

Resources

File Resources:

Keysight E5061B ENA Vector Network Analyzer Data Sheet

Keysight E5061B ENA Vector Network Analyzer Configuration Guide
