Product Overview

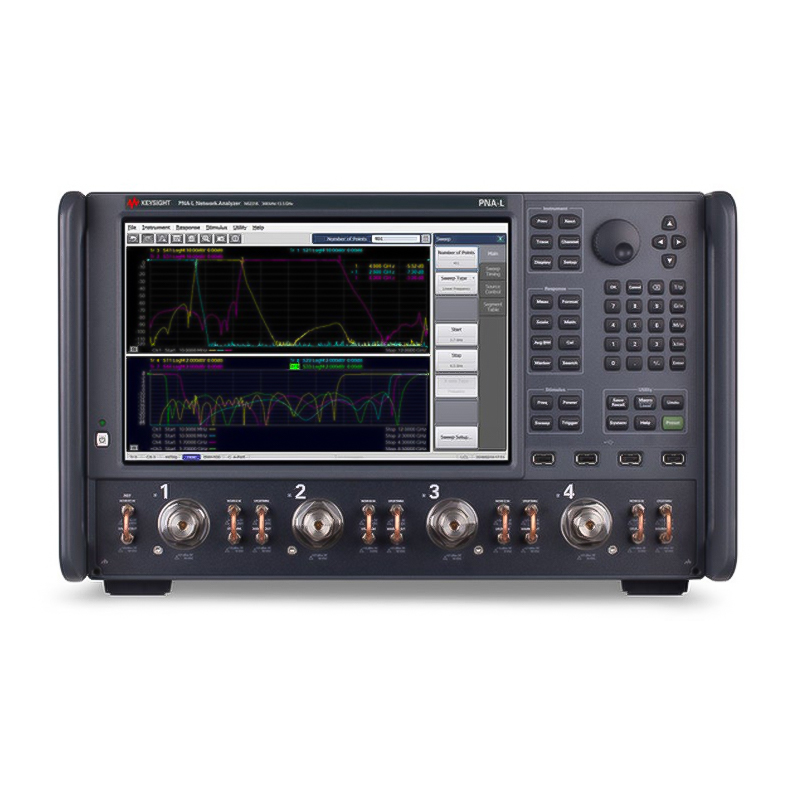

The PNA-L is an integrated vector network analyzer featuring a built-in S-parameter test set, one synthesized source used for device stimulus, a solid state drive, USB interfaces, and a 12.1” LCD touch screen display. The N5239B, N5231B and the N5232B have 50 ohm, ruggedized 3.5 mm (m) test ports. The N5234A and N5235B have 50 ohm, ruggedized 2.4 mm (m) test portcluded with each instrument is a mouse, keyboard (U.S. style), and a 3-year return-to-Keysight service warranty. For one day of on-site productivity assistance (not included with instrument purchase), request quantity 1 each PS-S20-PNA

Key Features and Functions

• Perform basic analysis of passive components and simple active devices
• Measure S-parameters with good accuracy up to 43.5 GHz in cost-sensitive applications
• Get the world’s best price-to-performance ratio for microwave manufacturing
• Configure an economical solution for signal-integrity measurements and materials characterization
• Accelerate insight into component behavior using a multi-touch display and intuitive user interface

Resources

File Resources:

Keysight 2-Port and 4-Port PNA-L Network Analyzer N5231B Data Sheet and Technical Specifications
