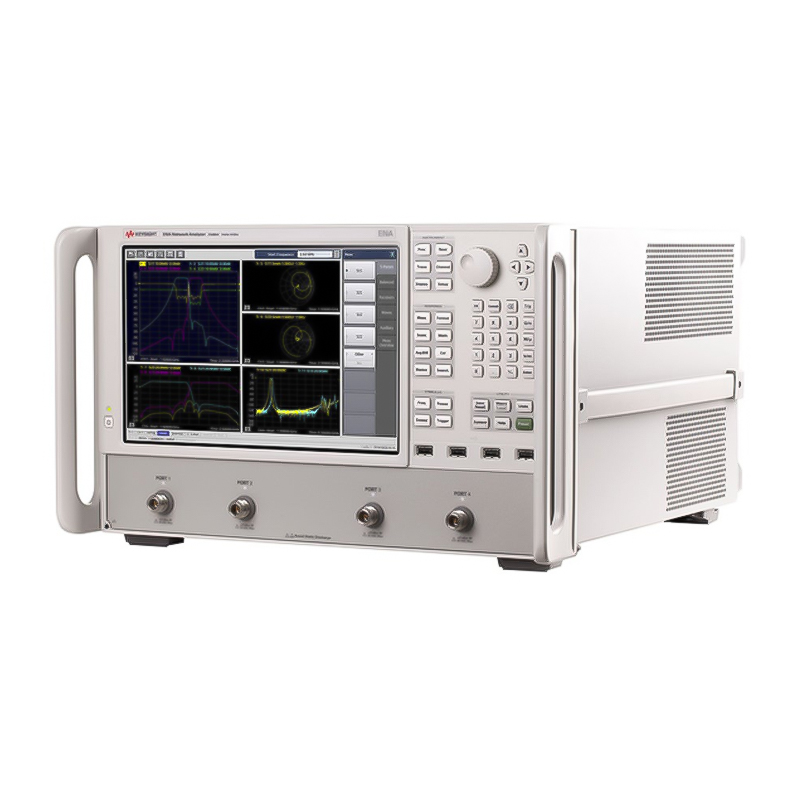

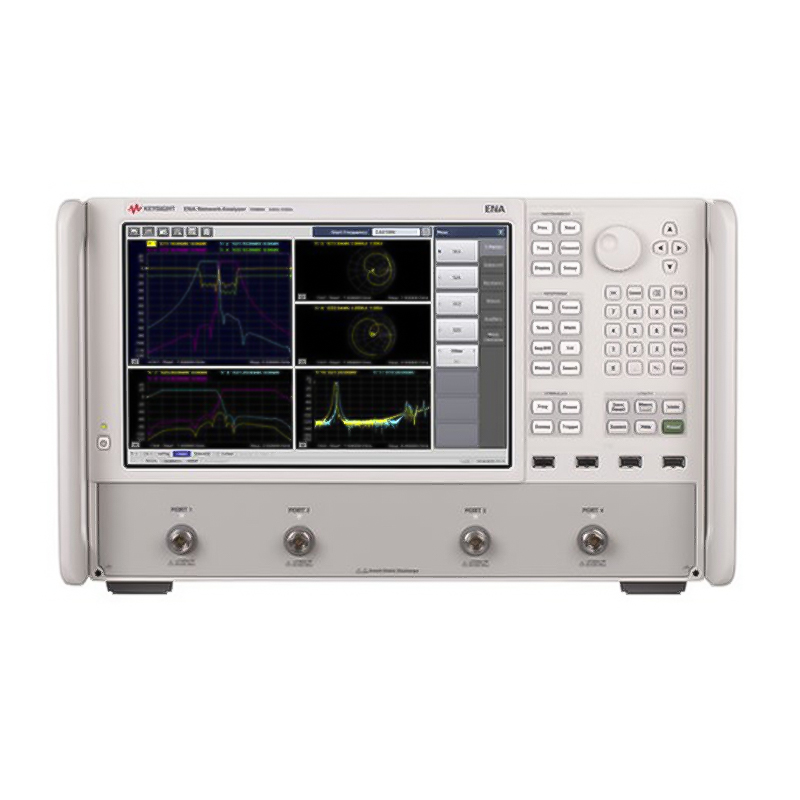

Keysight Technologies E5080A
| PRODUCT | Vector Network Analyzer |
|---|---|
| MODEL | E5080A |
| PRODUCT SERIES | ENA |
| MANUFACTURER | Keysight |
| DESCRIPTION | ENA Series Vector Network Analyzer |
SHARE ON:
Product Overview
Product Overview
The E5080A offers comprehensive functionalities for measuring active and passive components such as amplifiers, mixers, filters, duplexers, antennas and cables including balanced DUTs. On the production line, improved analog performance ensures faster throughput. In the R&D lab, better performance enables greater design margins, and enhanced usability helps ensure greater confidence in results and faster time-to-market. The E5080A’s enhanced performance including extremely wide dynamic range satisfy critical measurement needs of leading edge RF devices.
Key Features:
- Wide dynamic range 147 dB (typical)
- Fast measurement speed 3 ms (401 points)
- Low trace noise 0.0015 dBrms (10 kHz IFBW)
- High temperature stability 0.005 dB/C
- Wide source power range 90 to +15 dBm (spec)
- Intuitive touch-based GUI on large, high-resolution 12.1″ screen
- Up to 40-port capability with E5092A test sets
Specifications:
- MAXIMUM FREQUENCY: 9 GHZ
- Dynamic Range: n/a
- Output Power: 15 dBm
- Trace Noise: n/a
- Number of Built-In Ports: 2 or 4 ports
- Harmonics: -20 dBc
- Noise Floor: n/a
- Best Speed at 201 Point, 1 Sweep: n/a
- Applications: n/a
- Components: n/a
