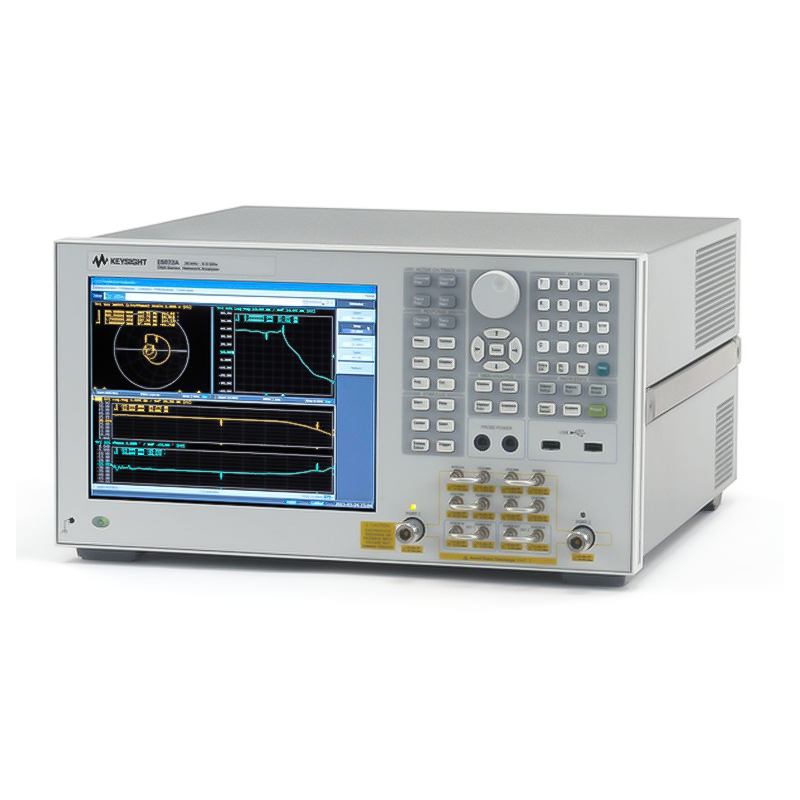

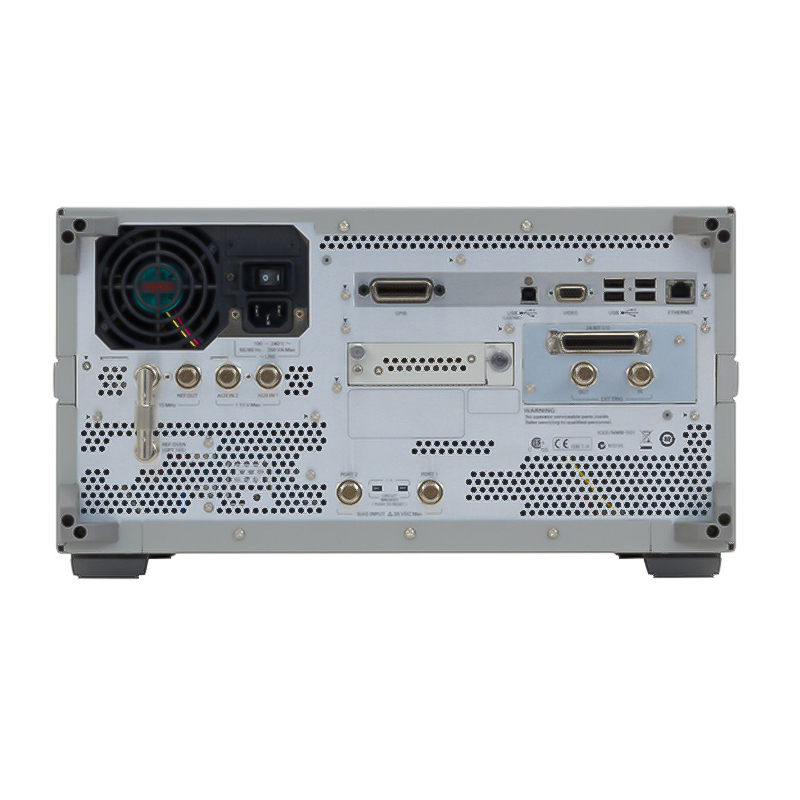

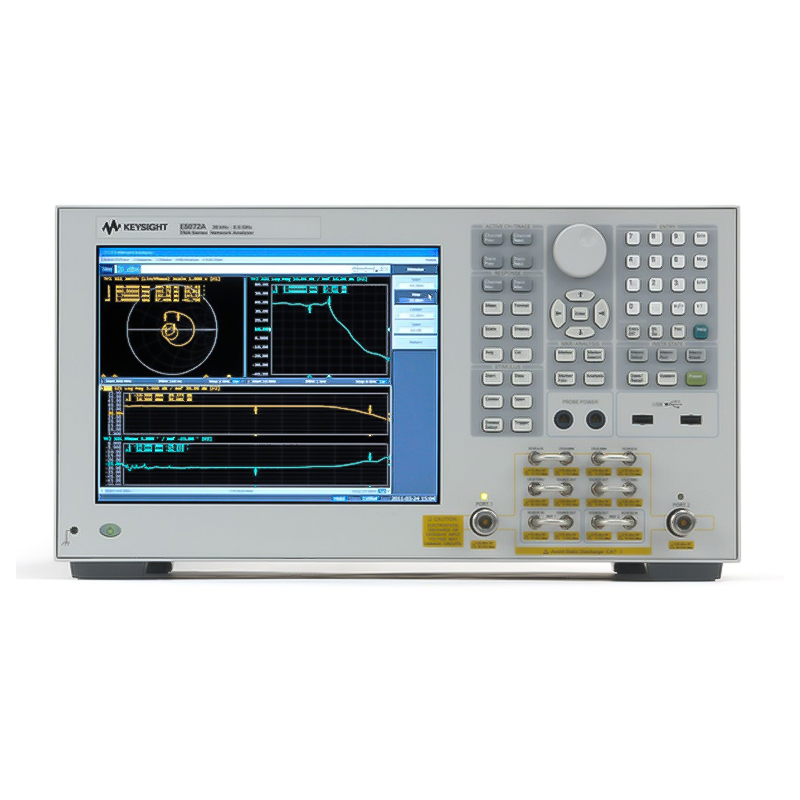

Keysight Technologies E5072A
| PRODUCT | Vector Network Analyzer |
|---|---|
| MODEL | E5072A |
| PRODUCT SERIES | ENA |
| MANUFACTURER | Keysight |
| DESCRIPTION | ENA RF Network Analyzer, 30 kHz to 4.5 GHz, 2-Port with Configurable Test Set |
Product Overview
Product Overview
The Keysight Technologies, Inc. E5072A ENA Series Network Analyzer is a new addition to the ENA series providing a more flexible platform with enhanced capabilities to meet your evolving measurement needs for a wide range of applications. The improved performance on the E5072A exceeds what is possible with the current RF network analyzers. The E5072A with a configurable test set provides access to the signal paths between the internal source, receivers, bridges, and the analyzer’s test ports; which improves instrument sensitivity as well as the ability to add components or peripherals for a variety of applications.
The E5072A delivers new standards in versatility, speed and accuracy, and is suitable for full performance characterization of passive and active components, such as antennas, filters, and high-power amplifiers. Carrying on the ENA series’ tradition, the E5072A has all the advantages of the industry-standard RF network analyzer (E5071C) and designed for the most demanding requirements from R&D and manufacturing.
Key Features:
- 30 kHz to 4.5 GHz & 8.5 GHz
- 2-port
- Improve accuracy, yield and margins with wide dynamic range 130 dB / 151 dB (direct receiver access), measurement speed 7 msec and excellent temperature stability 0.005 dB/°C
- Increase test flexibility with wide source power range -109 to +20 dBm for linear and nonlinear device characterization
