Keysight Technologies E4990A
| PRODUCT | LCR & Impedance Analyzer |
|---|---|
| MODEL | E4990A |
| PRODUCT SERIES | E4990A |
| MANUFACTURER | Keysight |
| DESCRIPTION | Impedance Analyzer, 20 Hz to 10/20/30/50/120 MHz LCR Meters and Impedance Analyzer |
SHARE ON:
Product Overview
Product Overview

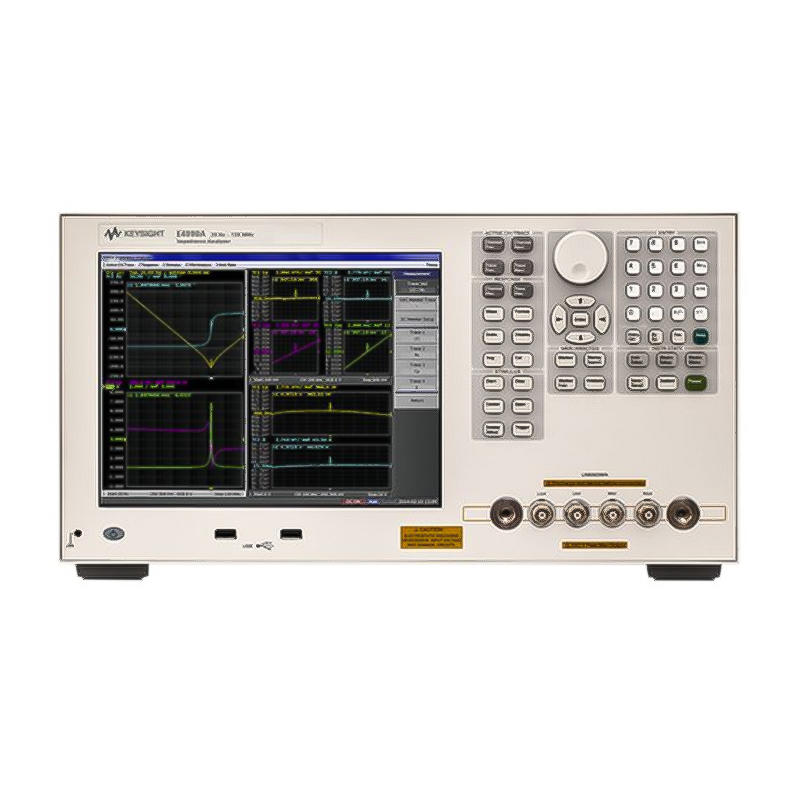

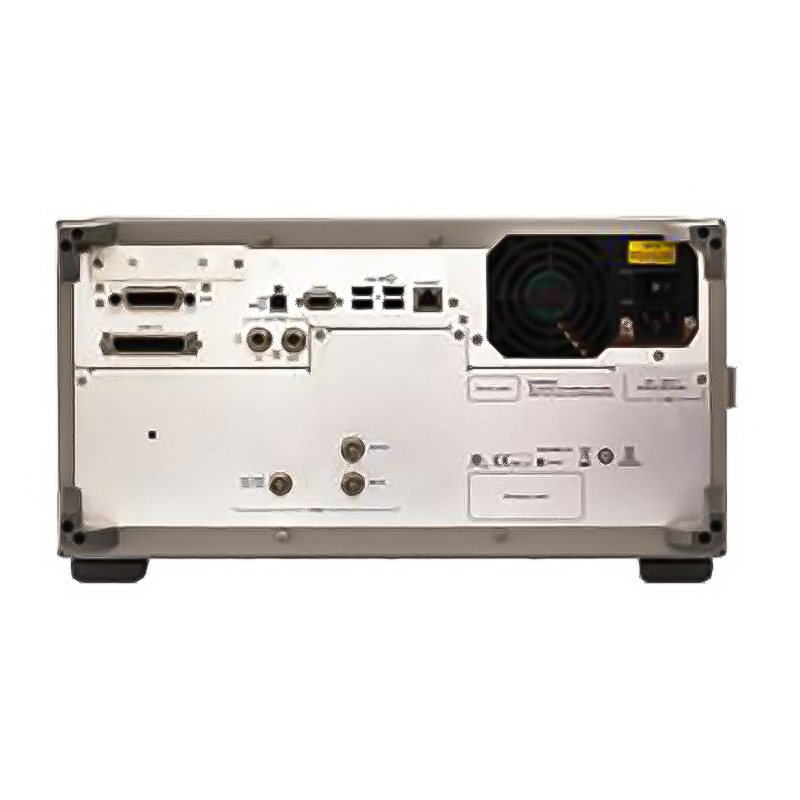

Keysight E4990A Impedance Analyzer, 20 Hz to 10/20/30/50/120 MHz
Key Features & Specifications
- Five frequency options; 20 Hz to 10/20/30/50/120 MHz, upgradable
- ±0.08% (typical ±0.045%) basic impedance measurement accuracy
- 25 m? to 40 M? wide impedance measurement range (10% measurement accuracy range)
- Measurement parameters: |Z|, |Y|, ?, R, X, G, B, L, C, D, Q, Complex Z, Complex Y, Vac, Iac, Vdc, Idc
- Built-in DC bias range: 0 V to ±40 V, 0 A to ±100 mA
- Enhanced measurement speed option (option 001. For 10M/20M/30M/50M options only)
- 4-channel & 4-trace on 10.4 inch color LCD with touch screen
- Data analysis function: Equivalent circuit analysis, limit line test
Basic accuracy
- 0.05% basic accuracy with superior measurement repeatability at low and high impedance
DC bias
- Built-in 40V DC Bias (Option 001)
- Rdc measurements (Option 200)
More features
- 20 Vrms test signal (Option 001)
- High-speed measurements: 5.6 ms
- 201 points list sweep
- Versatile PC connectivity (LAN, USB and GPIB)
Description
The E4980A precision LCR meter provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980A is the ultimate tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity.
