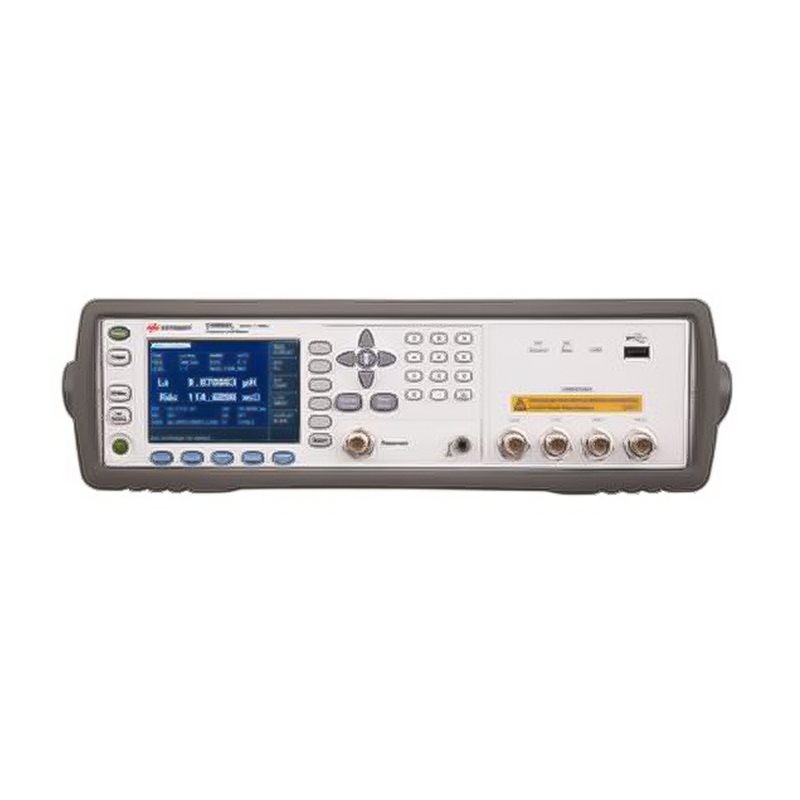

Keysight Technologies E4980AL


PRODUCT LCR & Impedance Analyzer
MODEL E4980AL
PRODUCT SERIES E4980A/L
MANUFACTURER Keysight
DESCRIPTION Precision LCR Meter 20 Hz to 300 kHz/500 kHz/1 MHz LCR Meters and Impedance Analyzer
Clear
SKU: N/A Category:
SHARE ON:

Product Overview

Key Features & Specifications

Frequency

  • 20 Hz to 300 kHz/500 kHz/1 MHz, with 4-digit resolution in any range


Basic accuracy

  • 0.05% basic accuracy with superior measurement repeatability at low and high impedance


More features

  • 100 uV to 2 Vrms, 1 uA to 20 mA variable test signal
  • DC bias 1.5/2 V
  • Auto-level control
  • DC resistance
  • 201 points list sweep

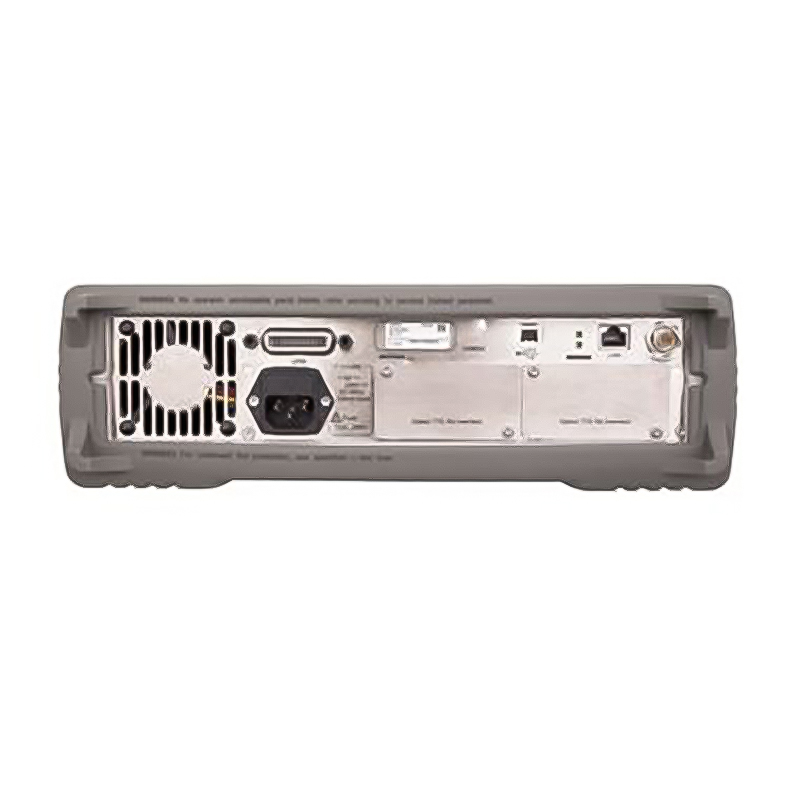

  • Versatile PC connectivity (LAN, USB, and GPIB)
  • Frequency Upgradability


Description
The E4980AL precision LCR meter is an industry standard LCR meter that provides the best combination of accuracy, speed, and versatility for a wide range of component measurements. The frequency upgrades provide a solid investment option and asset utilization.

Offering fast measurement speed and outstanding performance at both low and high impedance ranges, the E4980AL is the basic tool for general R&D and manufacturing test of components and materials. LAN, USB and GPIB PC connectivity enhances your design and test productivity.

E4980AL supports a variety of accessories suitable for many applications. They are designed to make measurements simple and reliable. Check out the large selection of accessories

Resources

File Resources:

Keysight Technologies E4980AL Data Sheet
