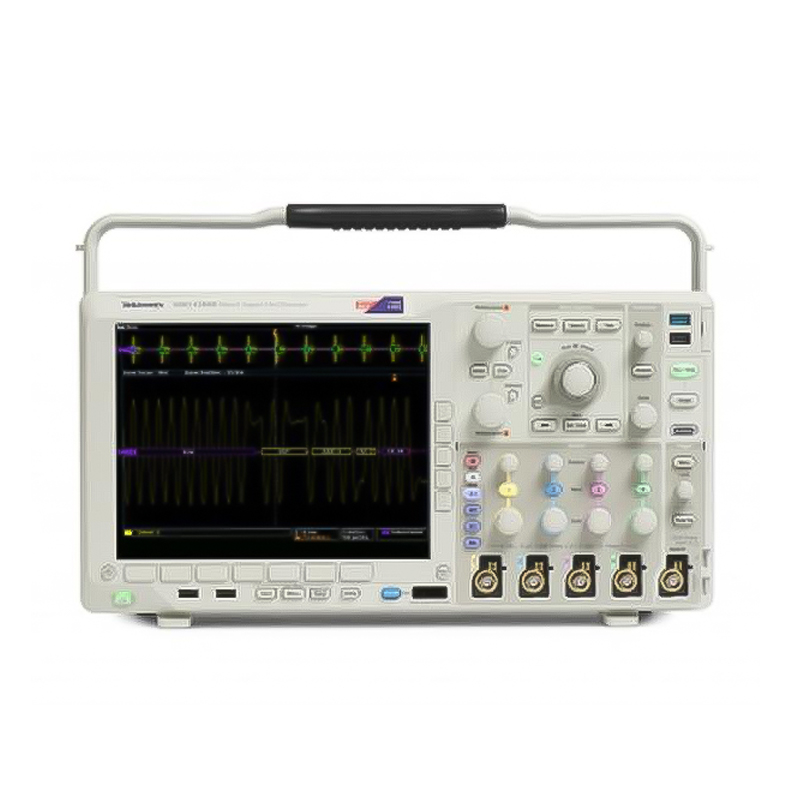

Product Overview

Features & Benefits

• Analog Bandwidth: 1 GHz
• Sample Rate: 5 GS/s
• Record length: 20M points
• 4 Analog Channels
• 16 Digital Channels
• Automated triggering, decode, and search on parallel buses
• Per-channel threshold settings
• Multichannel setup and hold triggerin
• MagniVu™ High-speed acquisition provides 60.6 ps fine timing resolution on digital channels
• >340,000 wfm/s maximum waveform capture rate
• Standard passive voltage probes with 3.9 pF capacitive loading
• Suite of advanced triggers
• Wave Inspector® controls provide easy navigation and automated search of waveform data
• 42 automated measurements, and FFT analysis for simplified waveform analysis
• Optional serial triggering, and analysis – automated serial triggering decode, and search for I²C, SPI, USB, Ethernet, CAN, LIN, FlexRay, RS-232/422/485/UART, MIL-STD-1553, and I²S/LJ/RJ/TDM
• TekVPI® probe interface supports active, differential, and current probes for automatic scaling and units
• 10.4 in (264 mm) bright XGA color display

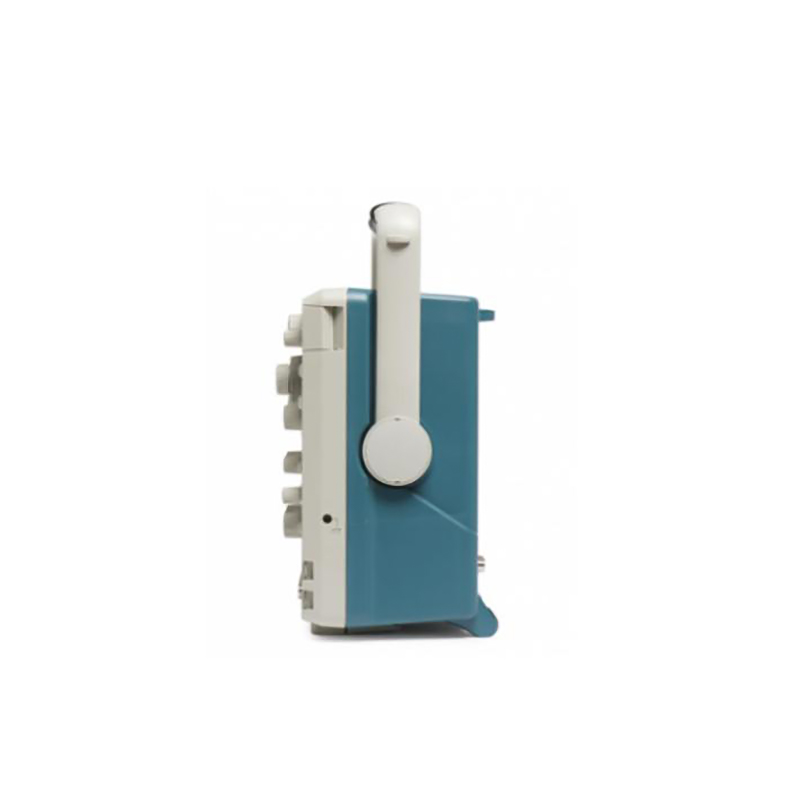

• Small footprint and lightweight – Only 5.8 in. (147 mm) deep and 11 lb. (5 kg)


Connectivity

• Two USB 2.0 host ports on the front panel and two on the rear panel for quick and easy data storage and connecting a USB keyboard
• USB 2.0 device port on rear panel for easy connection to a PC or direct printing to a PictBridge® – compatible printer
• Integrated 10/100/1000 BASE-T Ethernet port for network connection and video out port to export the oscilloscope display to a monitor or projector


Optional Application Support

• Power analysis
• Limit and mask testing
• HDTV and custom video analysis
