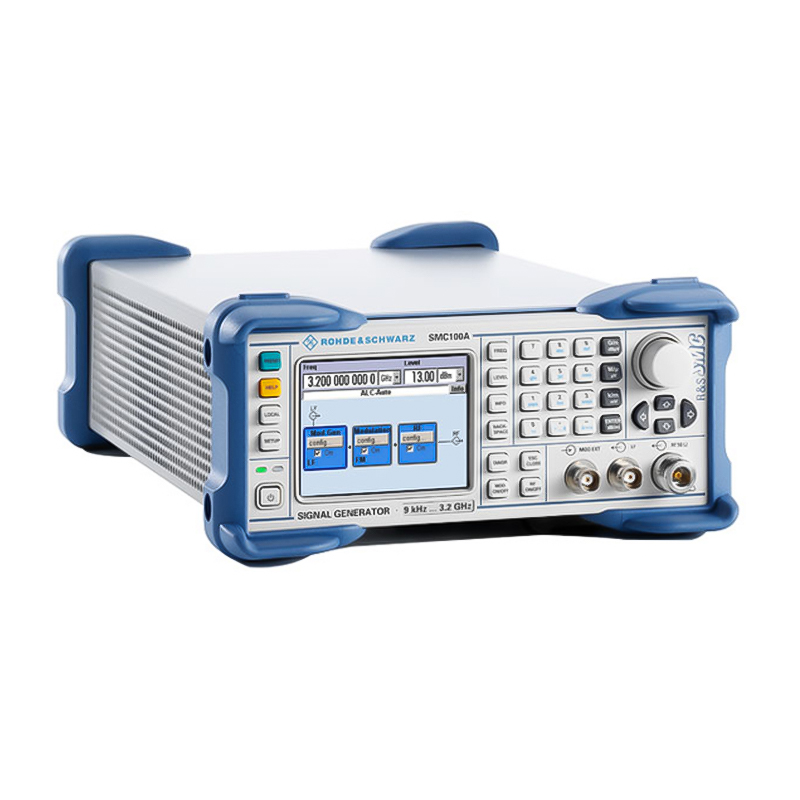

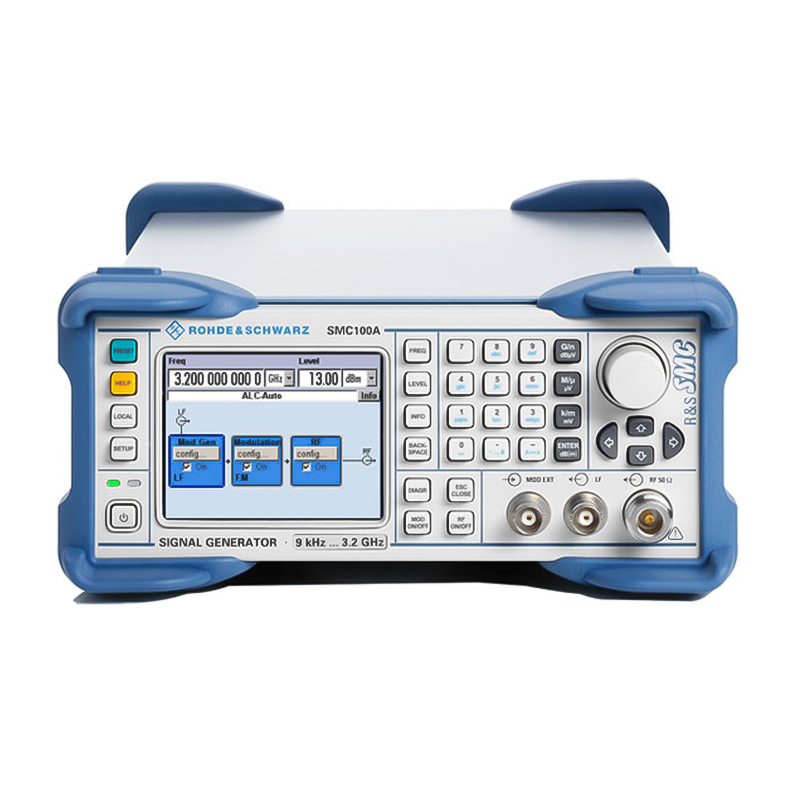

Product Overview

Frequency

• Frequency range
  • R&S®SMC-B101 frequency option: 9 kHz to 1.1 GHz
  • R&S®SMC-B103 frequency option: 9 kHz to 3.2 GHz
• Setting time
  • SCPI mode: <5 ms


Level

• Maximum output power
  • f = 200 kHz to 3.2 GHz and >+13 dBm
  • f =500 kHz and typ. above +17 dBm in overrange mode
• Level uncertainty
  • f = 200 kHz to 3.2 GHz ALC ON, AUTO mode, T = 18°C to 33°C and <0.9 dB
• Setting time
  • SCPI mode: <5 ms
• Back-feed
  • f = 1 MHz to 1 GHz – 50 W/50 V
  • f = 1 GHz to 2 GHz – 25 W/50 V
  • f = 2 GHz to 3.2 GHz – 10 W/50 V


Spectral purity

• Nonharmonics: carrier offset > 10 kHz, f =1600 MHz and <-60 dBc (typ. -72 dBc)
• SSB phase noise: f = 1 GHz, carrier offset = 20 kHz, 1 Hz measurement bandwidth and <-105 dBc (typ. -111 dBc)
• Wideband noise: f > 1 MHz, level > 5 dBm, carrier offset > 10 MHz, 1 Hz measurement bandwidth and <-138 dBc (typ. -148 dBc)


Supported modulation modes

• AM: standard
• AM depth: 0 % to 100 %
• FM/fM: standard
• Maximum FM deviation: f>1.6 GHz and 4 MHz
• Maximum fM deviation: f>1.6 GHz and 40 rad
• Pulse: standard
• Rise/fall time: <500 ns (typ. 100 ns)
• Minimum pulse width: with integrated pulse generator – 1 µs
• On/off ratio: >80 dB

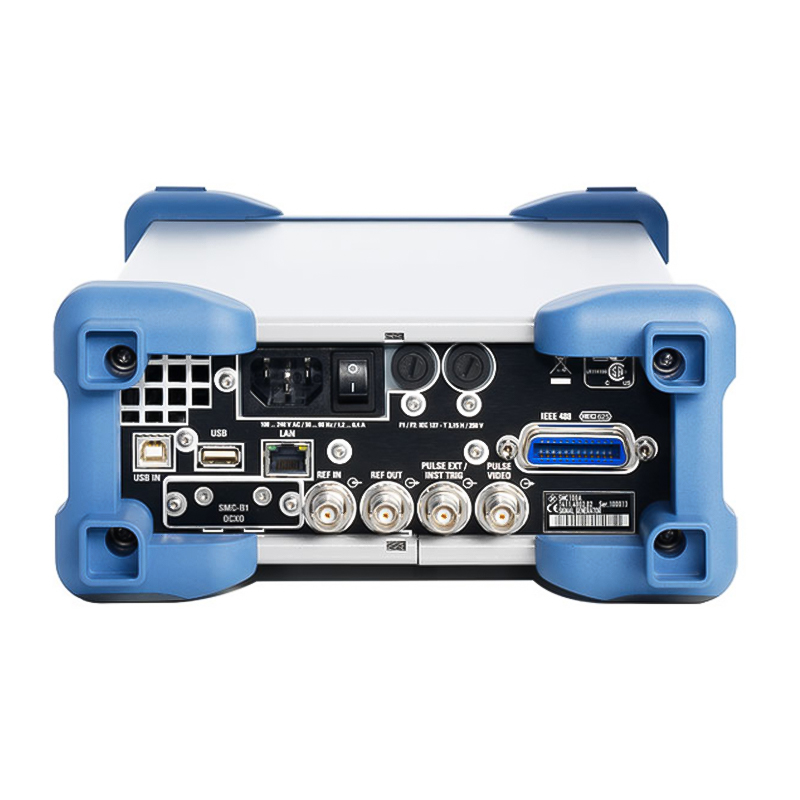

Connectivity

• Remote control
  • IEC/IEEE bus (with R&S®SMC-K4 option)
  • Ethernet(TCP/IP)
  • USB
• Peripherals: USB
