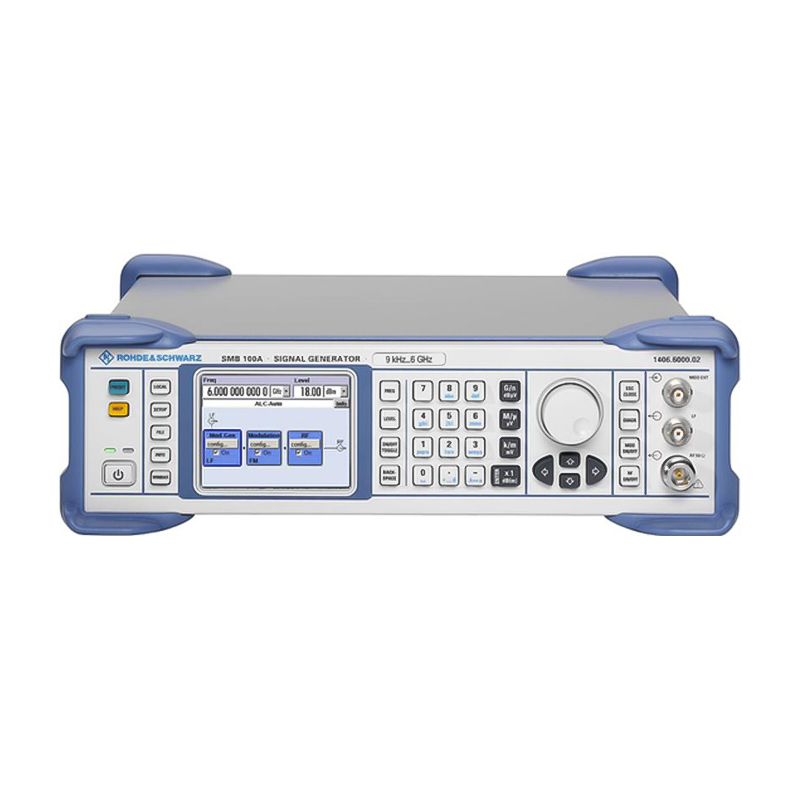

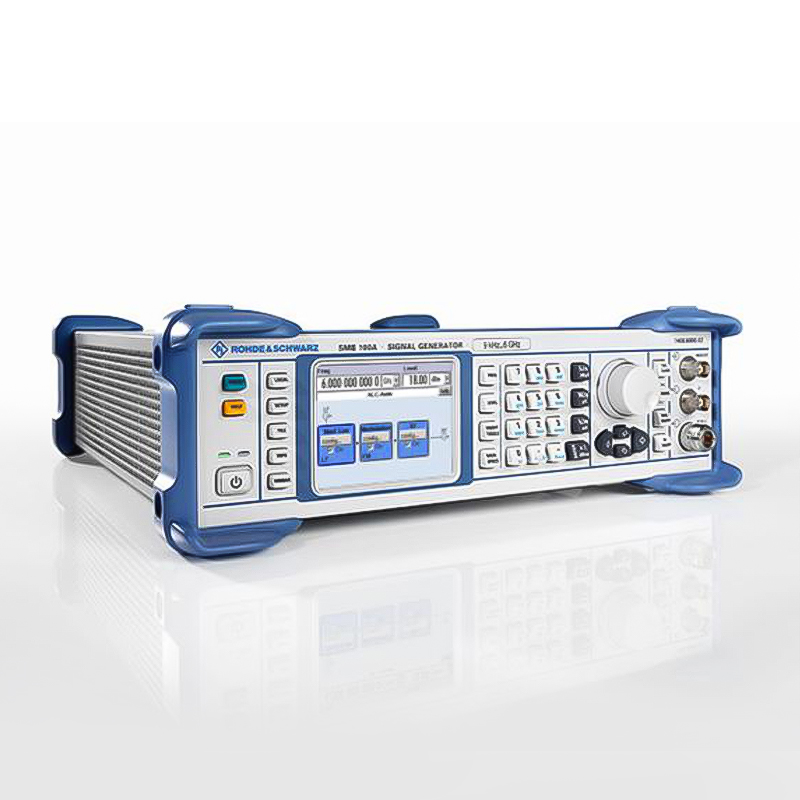

Rohde and Schwarz SMB100A


PRODUCT Signal Generator
MODEL SMB100A
PRODUCT SERIES SMB
MANUFACTURER Rohde and Schwarz
DESCRIPTION 9 kHz to 1.1 GHz, 2.2. GHz, 3.2 GHz, or 6 GHz / 100 kHz to 12.75 GHz, 20 GHz, 31.8 GHz, or 40 GHz Signal Generator
Clear
SKU: N/A Category:
SHARE ON:

Product Overview

Frequency

  • Frequency range
    • R&S®SMB-B101: 9 kHz to 1.1 GHz
    • R&S®SMB-B102: 9 kHz to 2.2 GHz
    • R&S®SMB-B103: 9 kHz to 3.2 GHz
    • R&S®SMB-B106: 9 kHz to 6 GHz
  • Setting time
    • SCPI mode: <3 ms, typ. 1.6 ms
    • List mode: <1 ms


Level

  • Maximum output power: f = 1 MHz to 6 GHz and >+18 dBm, up to +25 dBm in Overrange mode
  • Level uncertainty: f = 200 kHz to 3 GHz and <0.5 dB
  • Setting time
    • SCPI mode: <2.5 ms, typ. 1.2 ms
    • List mode: <1 ms
  • Back-feed
    • f = 1 MHz to 1 GHz – 50 W / 50 V
    • f = 1 GHz to 2 GHz – 25 W / 50 V
    • f = 2 GHz to 6 GHz – 10 W / 50 V


Spectral purity

  • Harmonics: level = 8 dBm, f > 1 MHz and <-30 dBc
  • Nonharmonics: carrier offset > 10 kHz, f = 1500 MHz and <–70 dBc (typ. –85 dBc)
  • SSB phase noise: f = 1 GHz, carrier offset = 20 kHz, 1 Hz measurement bandwidth and <–122 dBc (typ. –128 dBc)
  • Wideband noise: level > 5 dBm, carrier offset >10 MHz, 1 Hz measurement bandwidth and <–142 dBc (typ. –152 dBc)


Supported modulation modes

  • AM: standard
  • AM depth: 0 to 100 %
  • FM/fM: standard
  • Maximum FM deviation: f > 3 GHz and 16 MHz
  • Maximum fM deviation: f > 3 GHz and 160 rad
  • Pulse: optional (R&S®SMB-K22 pulse modulator)
  • Rise/fall time: <20 ns, typ. 10 ns
  • Minimum pulse width: using the optional pulse generator (R&S®SMB-K23) – 20ns
  • On/off ratio: >80 dB

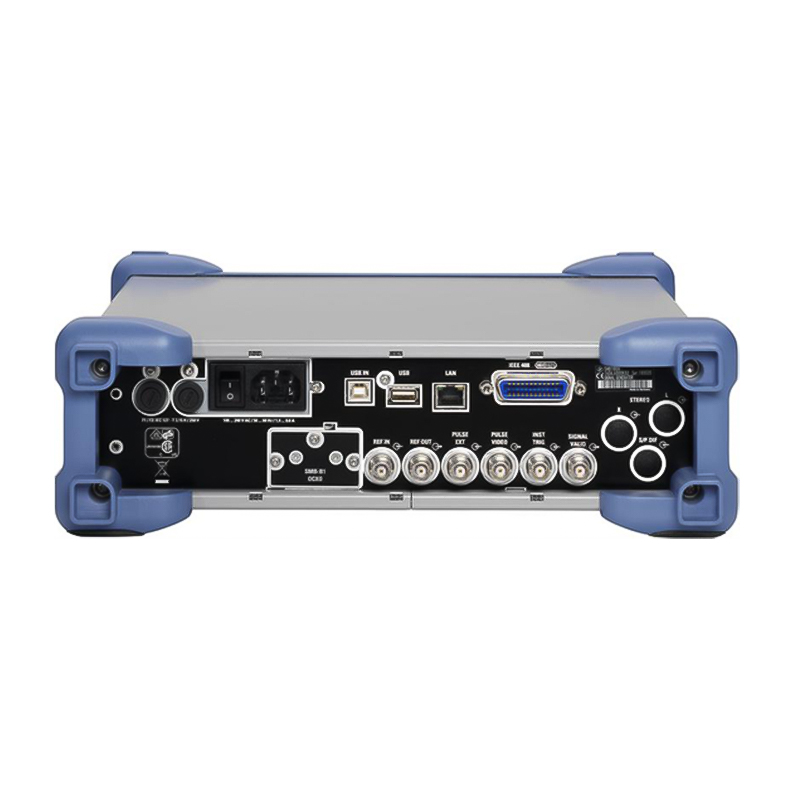

Connectivity

  • Remote control
    • IEC/IEEE bus
    • Ethernet (TCP/IP)
    • USB
  • Peripherals: USB
