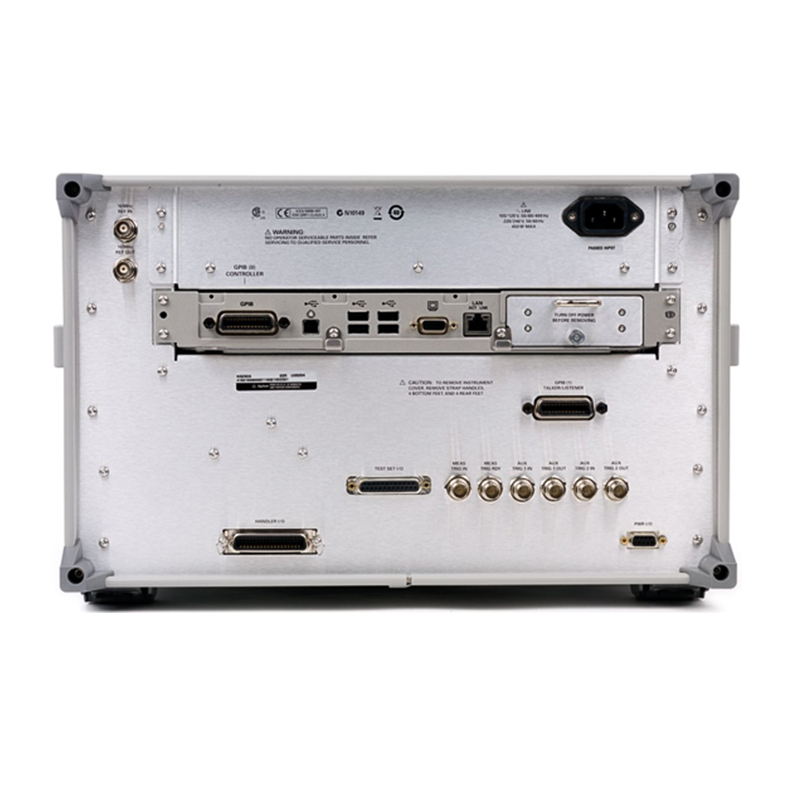

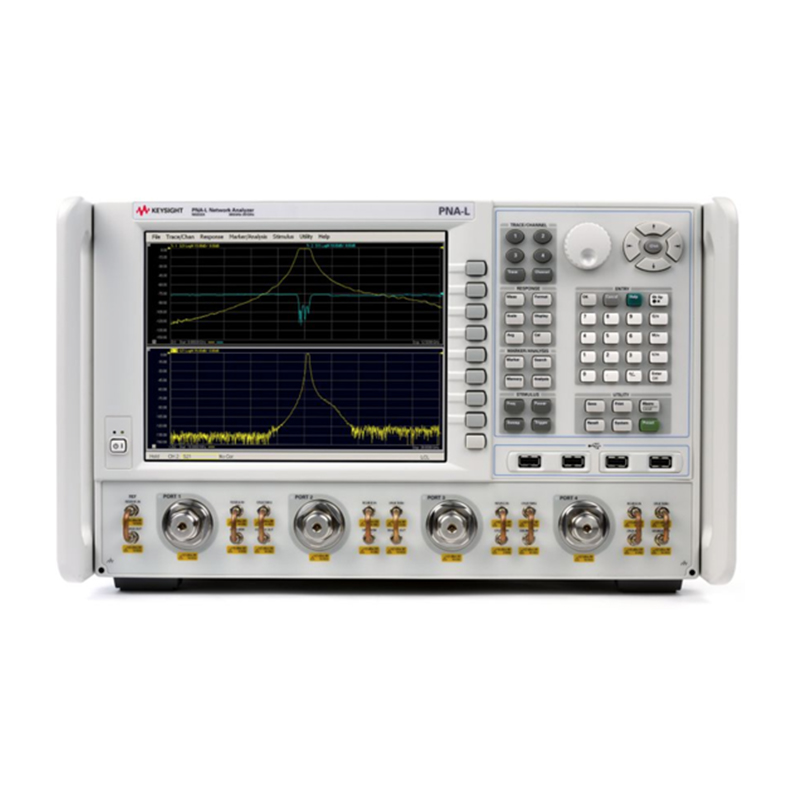

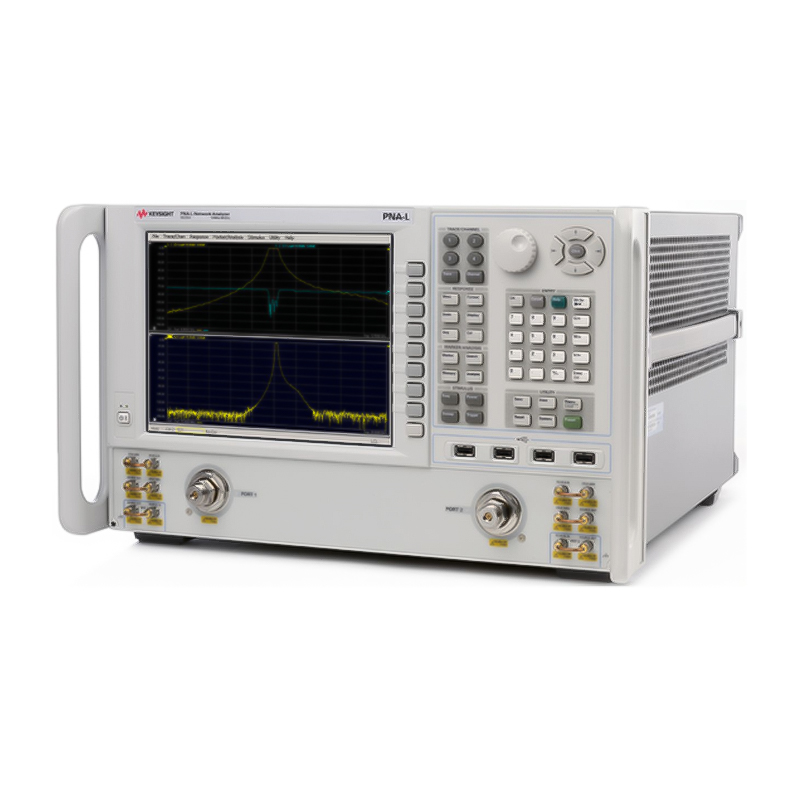

Keysight Technologies N5232A
| PRODUCT | Vector Network Analyzer |
|---|---|
| MODEL | N5232A |
| PRODUCT SERIES | PNA-L |
| MANUFACTURER | Keysight |
| DESCRIPTION | PNA-L Network Analyzer; 300 kHz to 20 GHz |
SHARE ON:
Product Overview
Product Overview
Overview
- Giving you an edge with the right mix of speed and performance
- Achieve greater yields and tighter guard bands with Keysight’s highest-performance mid-range VNA
- Transform great designs into competitive products with better throughput and repeatability
- Perform fast, accurate S-parameter measurements with future-proof capabilities
- Get the world’s best price-to-performance ratio for microwave manufacturing
Specifications
- Maximum Frequency: 20 GHz
- Dynamic Range: 133 dB
- Output Power: 13 dBm
- Trace Noise: 0.004 dBrms
- Number of Built-In Ports: 2 or 4 ports
- Harmonics: -18 dBc
- Noise Floor: -120 dBm
- Best Speed at 201 Point, 1 Sweep: 6 ms
- Network Analyzer Series: PNA-L Economy
- Instrument Type: Vector Network Analyzer
- Components:
- Cables
- Filters
- Benchtop: Yes
