Product Overview

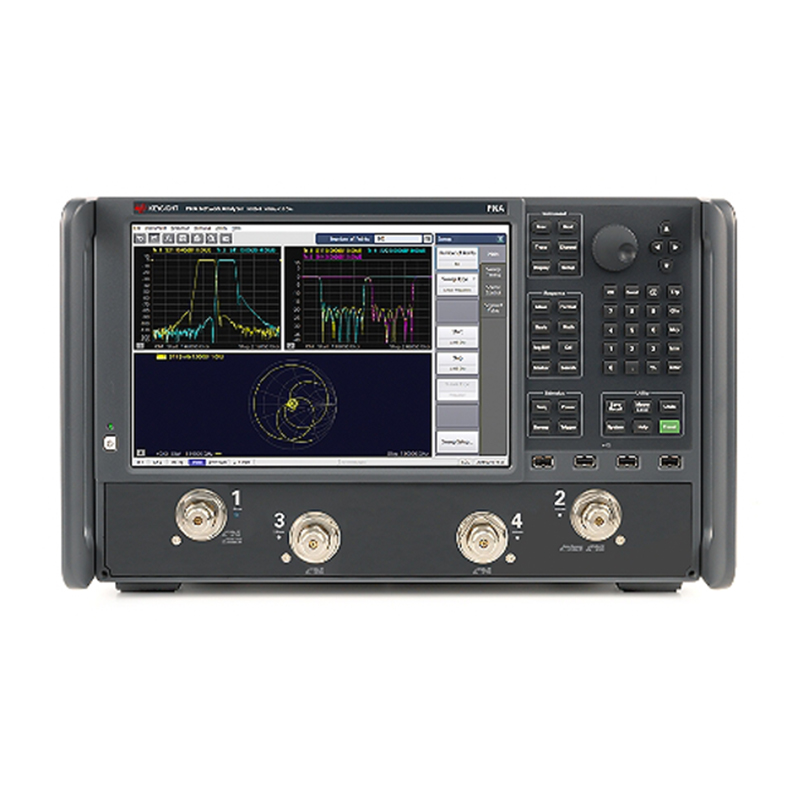

The PNA is an integrated vector network analyzer featuring a built-in S-parameter test set, one or two synthesized sources used for device stimulus, a solid-state drive, USB interfaces, and a 12.1” LCD touch screen display. The N5221B and the N5222B have 50 ohm, ruggedized 3.5 mm (m) test ports. The N5224B and the N5225B have 50 ohm, ruggedized 2.4 mm (m) test ports. The N5227B has 50 ohm, ruggedized 1.85 mm (m) test ports. Included with each instrument is a mouse, keyboard (U.S. style), a 3-year return-to-Keysight service warranty, and one day of on-site productivity assistance (PS-S20-PNA).

Key Features and Functions

• Meet your toughest measurement challenges with the highest performing microwave network analyzer in the industry
• Measure S-parameters with the smallest uncertainty and highest stability
• Efficiently characterize active components with applications that simplify setups
• Meet your specific budget and measurement needs by customizing to just the right level of performance
• Accelerate insight into component behavior using a multi-touch display and intuitive user interface

Resources

File Resources:

Keysight 2-Port and 4-Port PNA Network Analyzer Data Sheet and Technical Specifications for Option 210 and 410
