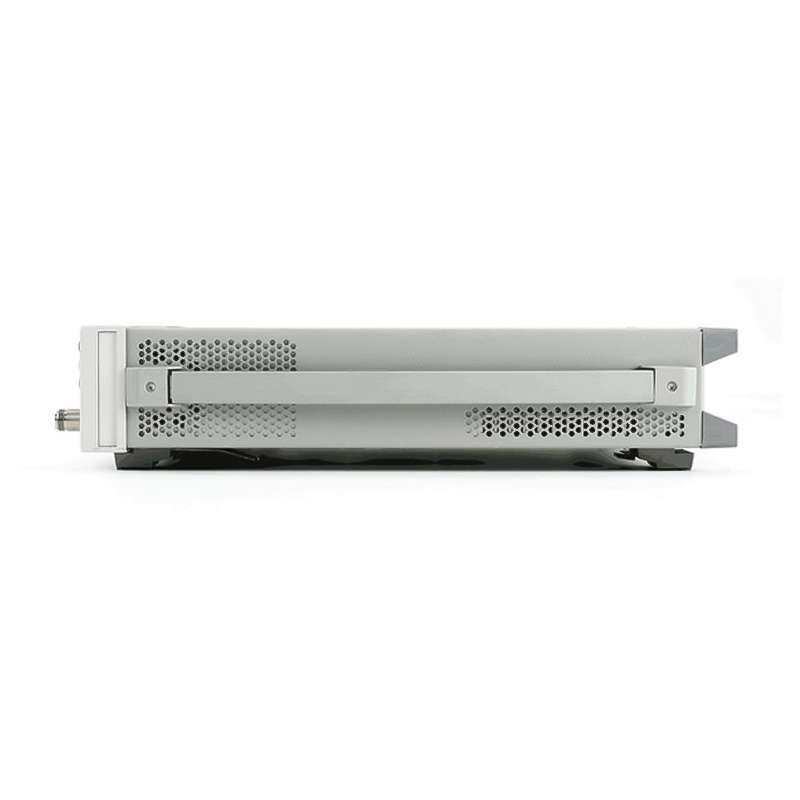

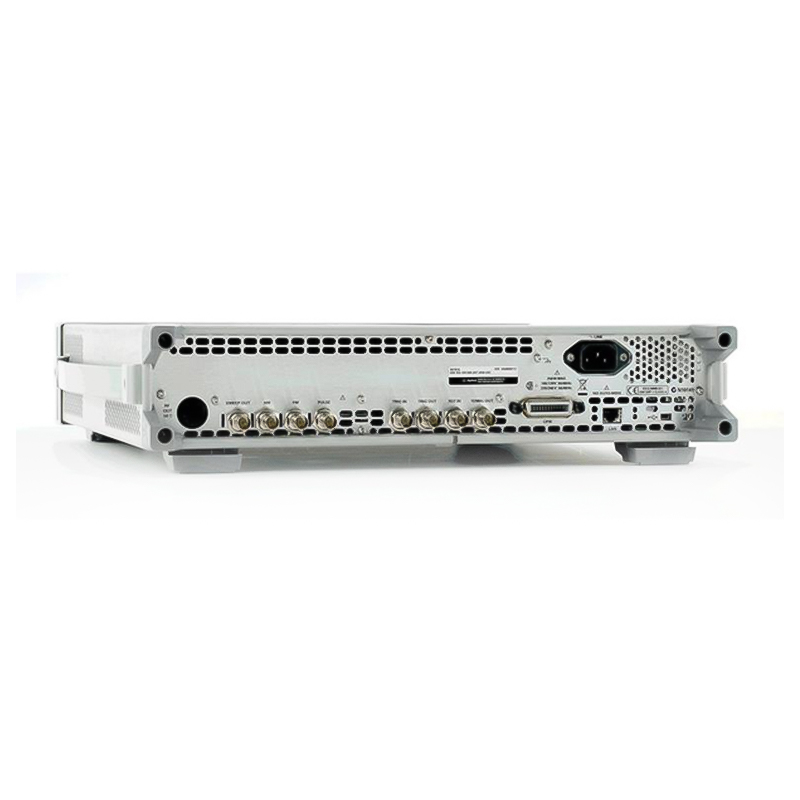

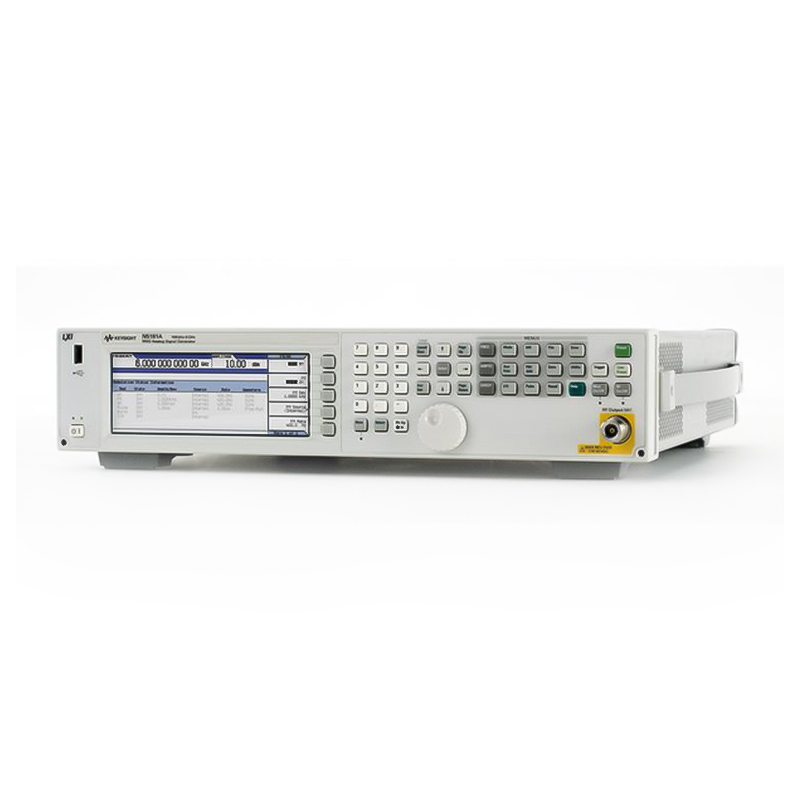

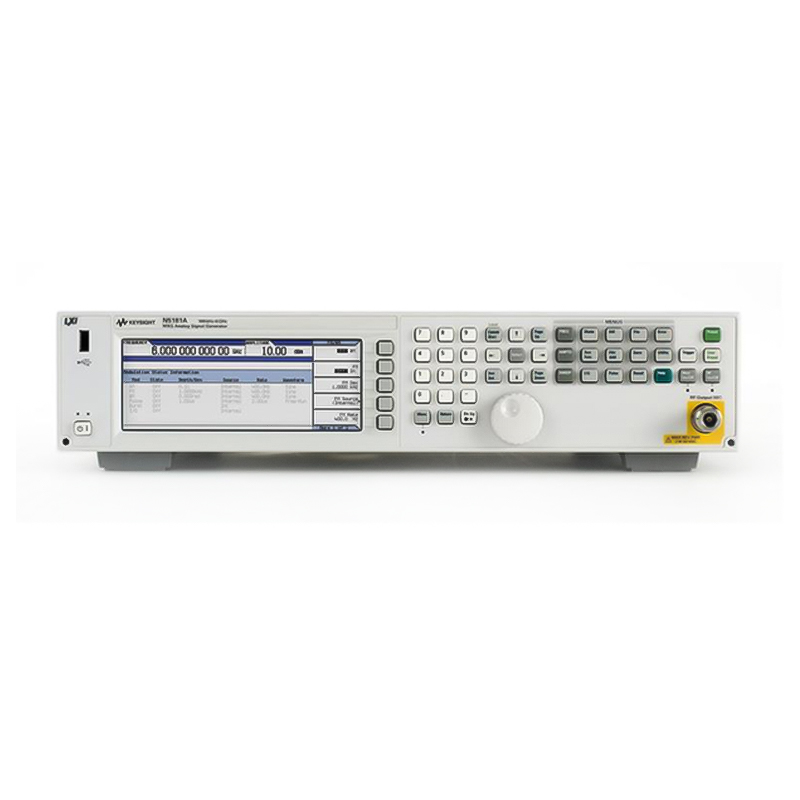

Keysight N5181A MXG RF Analog Signal Generator

• Frequency ranges: 100 kHz to 1, 3 or 6 GHz
• Generate accurate and repeatable reference signals for R&D to the production line with high reliability and power
• Increase throughput with fast switching options
• Configure to meet your specific test needs with scalable performance


Description
The MXG RF analog signal generator provides better value by increasing throughput, maximizing uptime and saving rack space. It features fast switching speeds and high output power and is optimized for accurate and repeatable reference signals. The reliable design, with simplifi ed self-maintenance options, ensures a low cost of ownership

Frequency options:

• N5181A-501 100 kHz to 1 GHz
• N5181A-503 100 kHz to 3 GHz
• N5181A-506 100 kHz to 6 GHz


Ideal for

• Component manufacturing test
• Installation and maintenance
• Depot and ATE test


Applications include

• LO substitution
• Blocker/interferer signals
• Transmitting source for antenna test


Performance upgrades for

• Fast frequency and amplitude switching
• High power (+23 dBm to 3 GHz)
• Low power (< —110 dBm)
• AM, FM, phase modulation
• Pulse modulation
• Narrow pulse modulation
