Product Overview

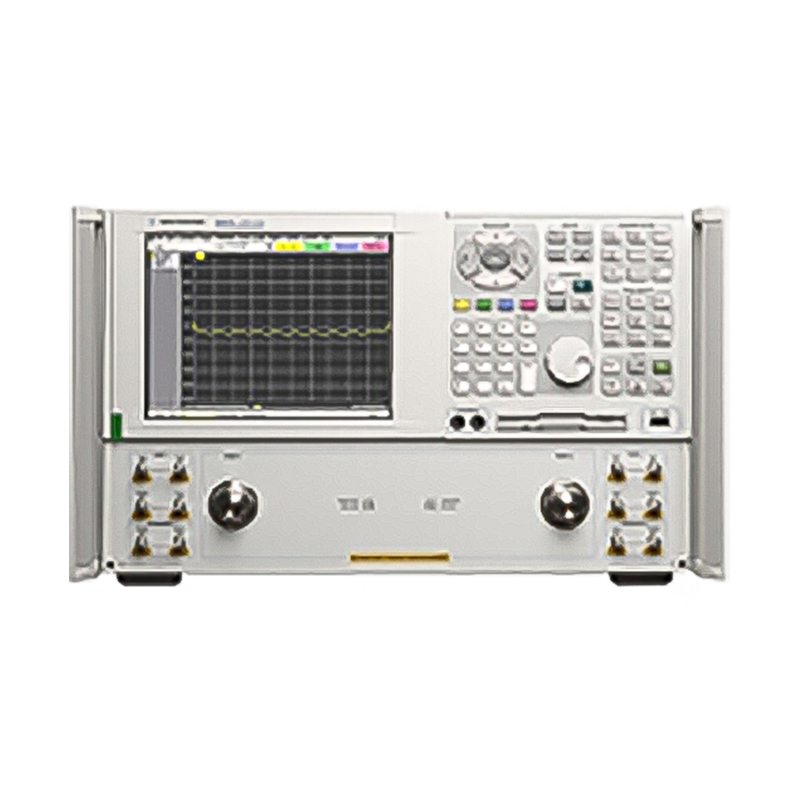

10MHz to 50GHz PNA Vector Network Analyzer.
Integrated S-parameter test set with four receivers for true TRL calibration.124dB dynamic range.

• <26usec per point measurement speed, 32 channels, 16,001 points.
• Optional configurable test set provides access to source and receiver signal
• paths for high power testing. Windows-based operation provides flexible
• measurement displays and the ability to import trace data and screen images to
• Microsoft Excel or Word for post-processing and reporting. 2,4mm test ports.
