Product Overview

Key Features and Functions
RF performance and leading-edge baseband generation

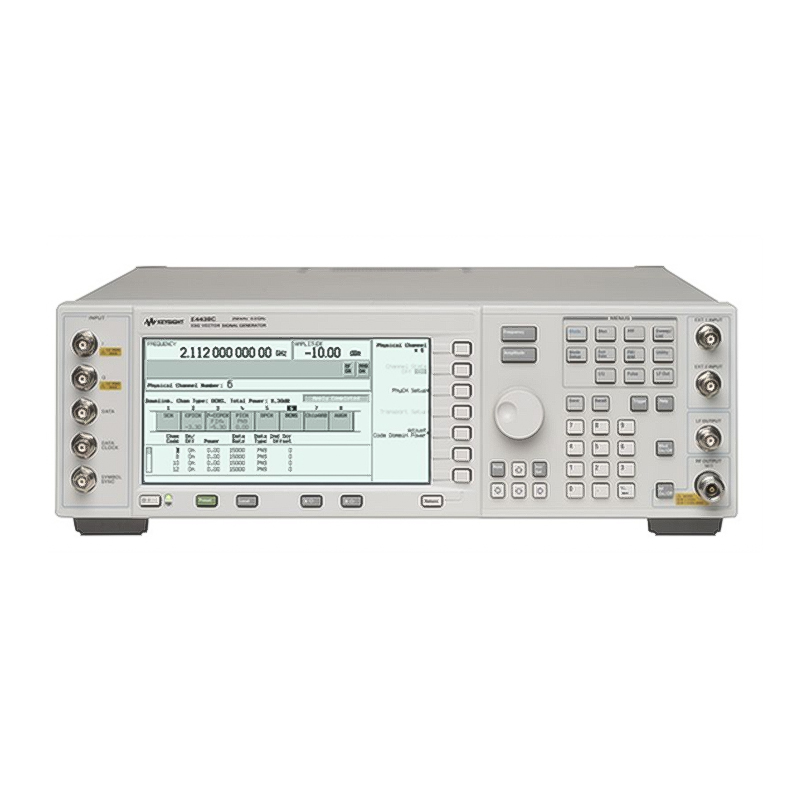

The E4438C ESG vector signal generator combines outstanding RF performance and sophisticated baseband generation to deliver calibrated test signals at baseband, IF, and RF frequencies up to 6 GHz. Offering an internal baseband generator with arbitrary waveform and real-time I/Q capabilities, ample waveform playback and storage memory, and a wide RF modulation bandwidth, the E4438C ESG is equipped to test today’s complex wireless systems and their components.

Signal characteristics

• 250 kHz to 1, 2, 3,4, or 6 GHz
• +17 dBm output power
• <-134 dBc phase noise at 1 GHz and 20 kHz offset typical


Modulation and sweep

• AM, FM, ØM, and pulse
• ASK, FSK, MSK, PSK, QAM, custom I/Q
• Step, or list, frequency and power


Baseband generation and signal creation

• 80 MHz dual mode internal baseband generator: arbitrary waveform and real-time I/Q
• 64 MSa playback memory and 1 GSa storage
• Create reference signals: LTE, HSPA+, WiMAX™, WLAN, DVB-H, GPS/GNSS, MATLAB and more – Signal Studio
• Multi-channel baseband generation with N5102A Digital I/O, MIMO fading and RF to RF fading with PXB Baseband Generator and Channel Emulator


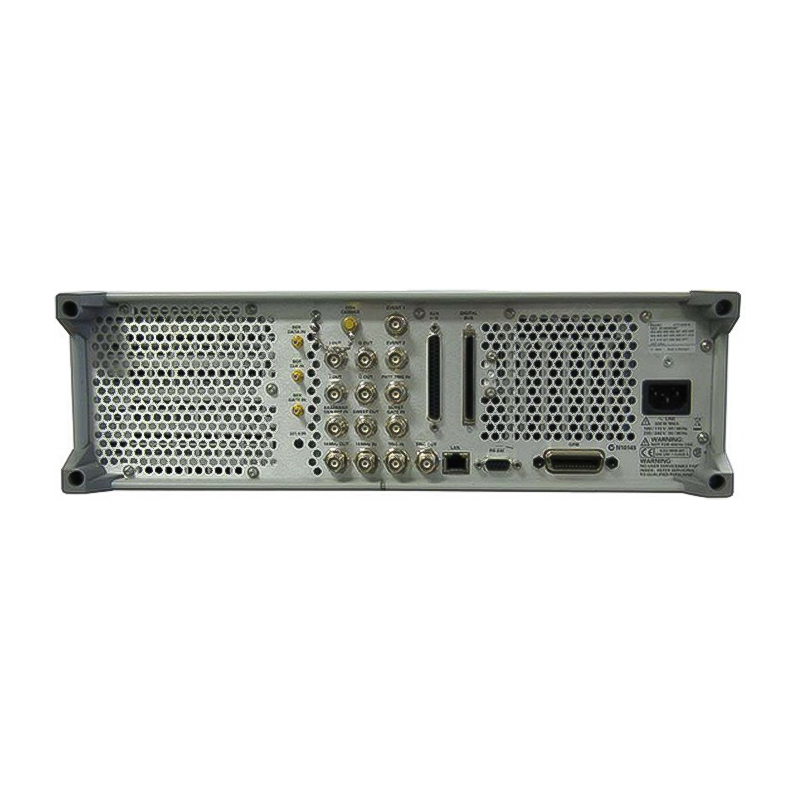

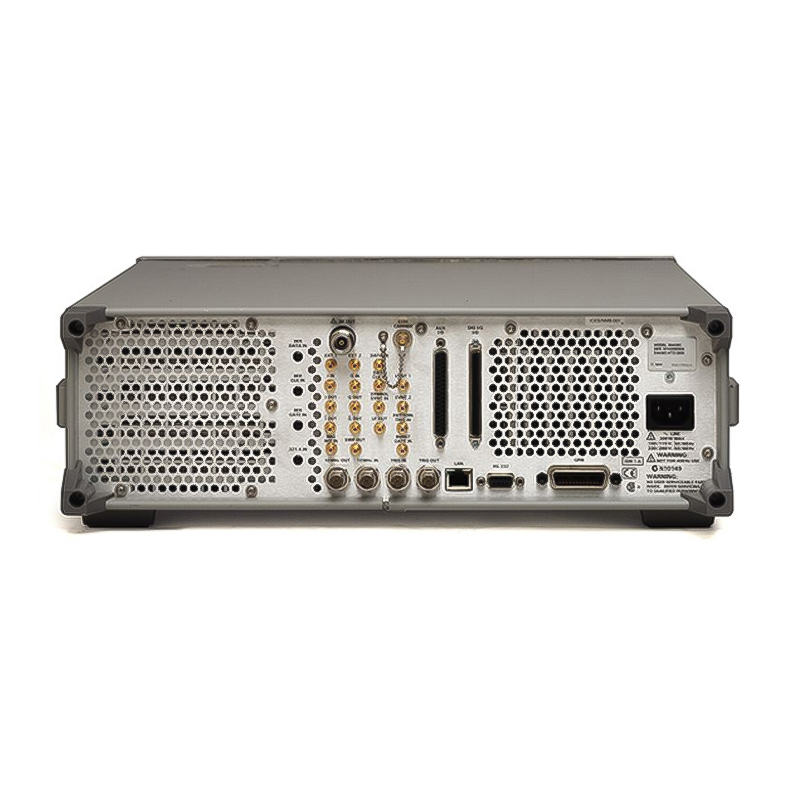

Automation and communication interface

• 10BaseT LAN and GPIB
• SCPI and IVI-COM drivers
• Backwards compatible with ESG, PSG and 8648 signal generators

Resources

File Resources:

Keysight Technologies Agilent E4438C ESG Vector Signal Generator Data Sheet
