Product Overview

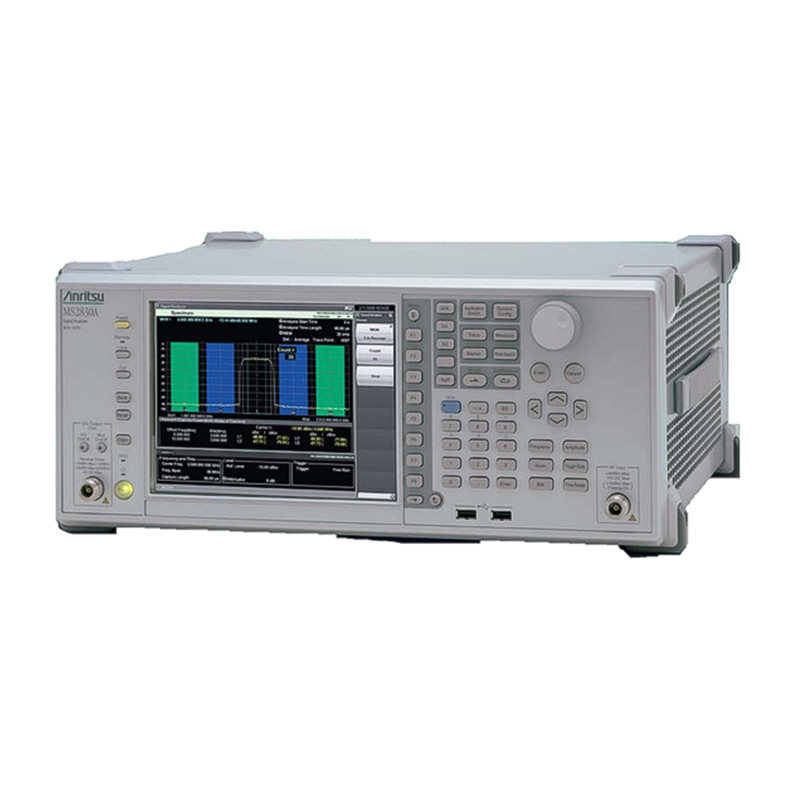

The MS2830A is a high-speed, high-performance, cost-effective Spectrum Analyzer/Signal Analyzer. Not only can it capture wideband signals but FFT technology supports multifunction signal analyses in both the time and frequency domains. Behavior in the time domain that cannot be handled by a sweep type spectrum analyzer can be checked in the frequency domain. A wide frequency can be analyzed using sweep type spectrum analysis functions while detailed signal analysis of a specific frequency band is supported too. Moreover, the built-in signal generator function outputs both continuous wave (CW) and modulated signals for use as a reference signal source when testing Tx characteristics of parts and as a signal source for evaluating Rx characteristics.

Versatile Built-in Functions:

• Channel Power
• Occupied Bandwidth
• Adjacent Channel Leakage Power
• Spectrum Emission Mask*4 – Spurious Emission
• Burst Average Power
• Frequency Counter
• AM Depth
• FM Deviation
• Multi-marker & Marker List
• Highest 10 Markers
• Limit Line
• 2-tone 3rd-order Intermodulation Distortion
• Annotation Display (On/Off)
• Power Meter
• Phase Noise
• Noise Figure

Resources

File Resources:

Anritsu Signal Analyzer MS2830A Data Sheet
